CNC Valve Fire Hydrant Car Rear Axle Three-sided CNC Boring And Milling Machine

Three-sided CNC boring and milling machine

Three-sided CNC boring machine is a CNC machine tool specially used for multi-sided boring processing. Boring is a precision machining process used to process holes and inner diameters, usually for processing high-precision holes or inner diameter surfaces. The three-sided CNC boring machine is controlled by a CNC system and can efficiently and accurately complete multi-sided boring tasks. It is suitable for production environments that require high precision and high efficiency.

Main features
‌1. High-rigidity bed structure‌: Multi-sided CNC boring and milling machines usually use high-strength cast iron or welded steel structures as the bed, and enhance rigidity through rib design to withstand heavy cutting forces‌.

2. Precision guide system‌: Rolling guides, hydrostatic guides or linear guides are used to reduce friction and ensure movement accuracy and stability‌.

3. High spindle speed and high torque‌: The spindle has high speed and high torque, which meets the needs of fine machining and rough machining, and is equipped with a constant temperature cooling system to reduce thermal deformation‌.
4. Automatic tool changer (ATC): The tool magazine cooperates with the manipulator to achieve fast tool change and improve processing continuity and efficiency.
5. Closed-loop control of the CNC system: The CNC system cooperates with the grating ruler/encoder to provide real-time feedback, correct errors, and ensure processing accuracy.
6. High-load and high-precision positioning workbench: Large-size workbenches require high loads (such as hydraulic clamping) and use high-precision ball screw drive positioning.
7. High-performance servo motor drive: High-performance servo motor drive is used, with characteristics such as large low-frequency torque, stable output, and fast dynamic torque response. ‌
8. Advanced control technology: Such as high-performance vector control, fast deceleration and parking, strong anti-interference ability, etc., further improve the stability and processing efficiency of the machine tool.

Main components
1. Bed: Provides support and stability.
2. Spindle: Responsible for boring. It has three spindles and can process up to three surfaces at the same time.
3. Workbench: Used to fix the workpiece, usually can be rotated or moved to meet different processing requirements.
4. Control system: CNC system, responsible for programming and controlling the processing process.

Application
1. Casting valves: various valves, such as gate valves, butterfly valves, check valves, etc.
2. Casting water pumps: water pumps of various calibers and shapes.
3. Fire protection industry: water supply and drainage facilities such as fire hydrants.
4. Pipe fittings industry: various flange pipe fittings.

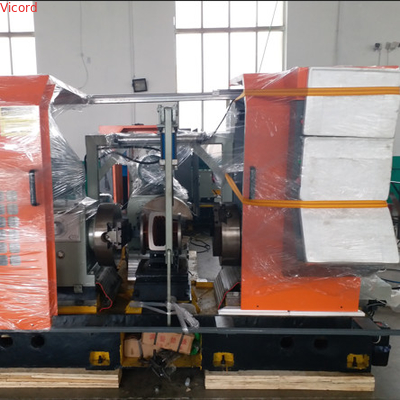

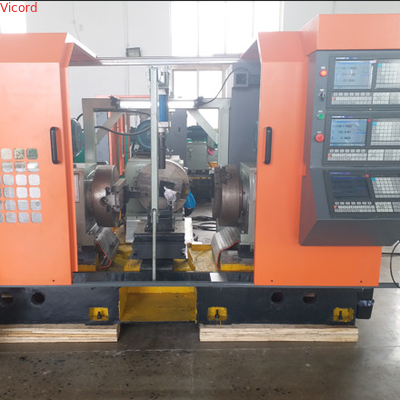

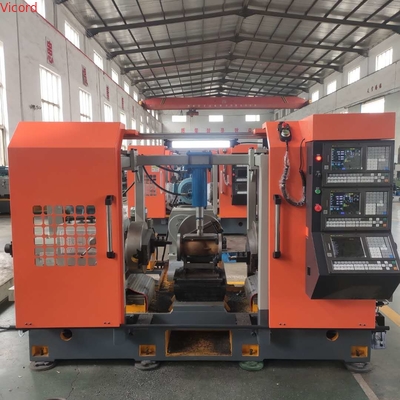

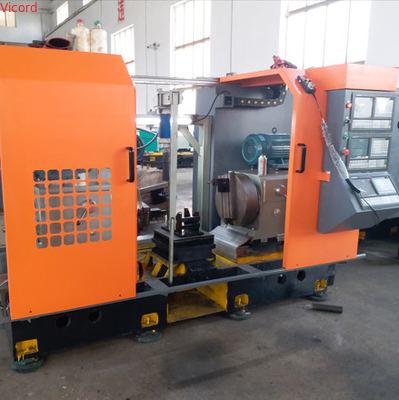

Details

Processed product
