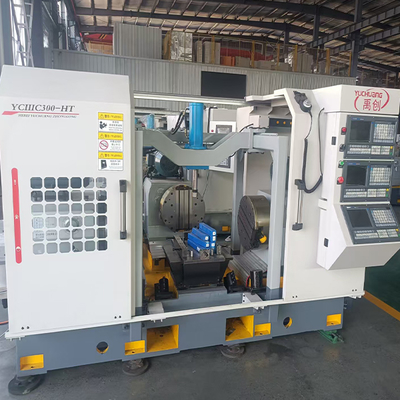

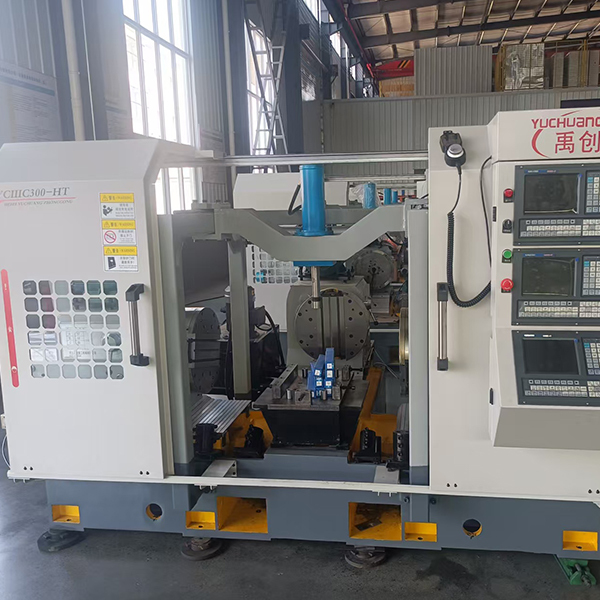

High Speed Full Cover Three Sides Processing Valve Making Machine

High Speed Full Cover Three Sides Processing Valve Making Machine

Brand Name:	Vicord
Model Number:	YC ll C300HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Turning Diameter:

φ460

Spindle Speed Range:

72-256 R/min

Servo Motor:

7.7 N.m

Surface Roughness:

6.3

X-axis Travel:

170 Mm

Z-axis Travel:

450 Mm

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Product Description

High Speed Full Cover Three Sides Processing Valve Making Machine

The three-sided CNC milling turning machine is a high-precision and high-efficiency CNC machine tool, which is mainly used for processing water pump , hard seal gate valve and customized product , especially workpieces that require multi-sided processing. The characteristics of this machine tool are that i has the ability to process three surface at the same time, which is suitable for complex parts that require high precision and multi-sided processing. it can save time and labor cost

Main features

1 Three-sided processing
The three surface of the workpiece can be processed at one time, reducing the number of clamping times and improving efficiency and precision.

it active automatic working line .
2. CNC system
Adopting advanced CNC (CNC) system(nanjing huaxing or can be customized according to customized, it has a high degree of automation and can accurately control the processing process, which is suitable for complex shape processing.
4. High precision
Equipped with high-precision spindle and guide rail to ensure processing accuracy and surface quality. in order to provide high quality product for our customer

Main structure

Bed: Provides stable support, usually using high-rigidity cast iron, it will be much more stable
Spindle box: drives the tool to rotate and is equipped with a high-precision spindle in order to ensure the Accuracy.
CNC system: controls the machining process, usually equipped with a touch screen and a graphical interface.let worker operate it easily

Application

Valve manufacturing: machining gate valves, butterfly valves, check valves, fire hydrants, balance valve ,globe valve etc.

Item	specification	YC III C300HT
Technical specifications	Maximum turning diameter (mm)	♦460
	Maximum processing length (mm)	800
	Minimum processing length (mm)	200
	Maximum processing size from center cutting flange to center (mm)	400
	Minimum processing size from center cutting flange to center (mm)	150
	Satisfying processing angle	11.25, 22.5, 30, 45, 90, 180
	X-axis travel (mm)	170
	Z-axis travel (mm)	450
Processing accuracy	Coaxiality (mm)	≤0.1
	Parallelism (mm)	≤0.1
	Verticality (mm)	≤0.1
	Surface roughness	6.3
Main drive	Transmission type (gear speed change)	4档变速
	Spindle speed range (r/min)	72-256
	Spindle motor model	YE2-132M-6-5.5KW
CNC control system (optional)	Nanjing Huaxing - stepper system
	Nanjing Huaxing - servo system
	Guangzhou CNC - stepper system
	Guangzhou CNC - servo system
Feed type (optional)	Stepper motor	24N.m
Feed type (optional)	Servo motor	7.7N.m
Machine tool appearance	Machine tool dimensions (length x width x height mm)	3950 x 2750 x 1800
Machine tool appearance	Machine tool dimensions (length x width x height mm)	4150 x 3000 x 1800
	Machine tool weight (kg)	5800

Processed Products
