Multi-Hole Drilling And Tapping Machine

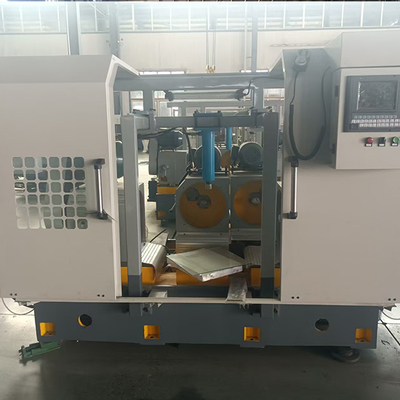

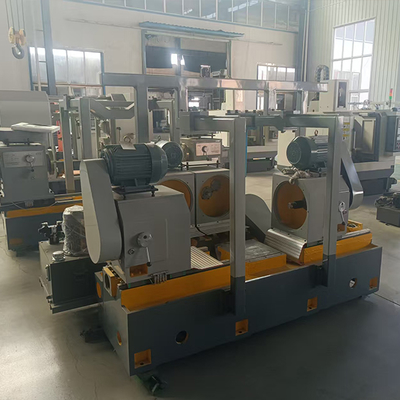

Multi-Hole Drilling And Tapping Machine

Brand Name:	Vicord
Model Number:	YC Z200HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Drilling Center Distance (mm):

295-770

Maximum Machining Length(mm):

600-1000 Mm

Minimum Machining Length(mm):

200-300 Mm

Surface Roughness:

12.5

Spindle Motor Range (r/min):

225/286

Control System:

PLC

Warranty:

1 Year

Type:

Drilling Machine

Material:

Metal

Power Supply:

380V/50Hz

Drilling Depth:

0-50mm

Model:

Double Side

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Product Description

Multi-Hole Drilling And Tapping Machine

Valve Pipe Fittings flange PLC control Horizontal Two-Spindle Multiple Drilling and tapping Machine is specially designed for high-efficiency drilling and tapping of valve components. Featuring dual-spindle technology, it enables simultaneous multi-hole drilling, significantly boosting productivity ,after drilling the tapping head move to correct position for tapping . clamping one time drilling and tapping process together.

Main Components

Base & Frame

Heavy-duty construction provides exceptional stability
Rigid foundation supports the entire machine structure

Multi-Spindle System

Core drilling component with simultaneous multi-hole capability
Enables high-efficiency parallel processing

Precision Worktable

Horizontal mounting surface with secure clamping system
Ensures stable workpiece positioning during operations

PLC Control Panel

Fully automated process control
Real-time monitoring and parameter adjustment

Coolant Circulation System

Maintains optimal temperature during machining
Extends tool lifespan while improving surface quality

Advantages

High Productivity – Simultaneous multi-spindle drilling for faster cycle time
Precision Machining – PLC-controlled accuracy ensures consistent hole positioning
Adaptable Design – customized valve sizes and drilling configurations
Cost-Efficient – Optimizes output while reducing per-unit manufacturing costs

Applications

Valve Manufacturing:
Drilling holes in valve bodies, flanges, and other components.
Applicable to ball valves, gate valves, globe valves, and check valves.

Oil and Gas Industry:
milling turning surface on flange ,pipe fittings , flange fittings .

Project	YC II Z200HT	YC II Z300HT	YC II Z400HT	YC II Z600HT
Technical specifications	∅295	∅410	∅525	∅770
	600	800	800	1000
	200	200	300	300
	340	450	450	450
	moshi2#	moshi2#/moshi3#	moshi2#/moshi3#	moshi2#/moshi3#
Processing accuracy	≤0.5≤0.5	≤0.6≤0.6	≤0.8≤0.8	≤1≤1
Processing accuracy	12.5	12.5	12.5	12.5
Spindle drive	2 level	2 level	2 level
	225/286	197/223	159/231	11KW motor
	YE2-132M–6–5.5KW	YE2-132M–6–5.5KW	YE2-132M–6–7.5KW	YE2-180L–8–11KW
control system (optional)	PLC
Feed form (optional)	Hydraulic drive
Machine shape	2800X1000X1500	3200X1200X1700	3300X1200X1700	3400X1500X2000
Machine weight (kg)	1800	2200	3000

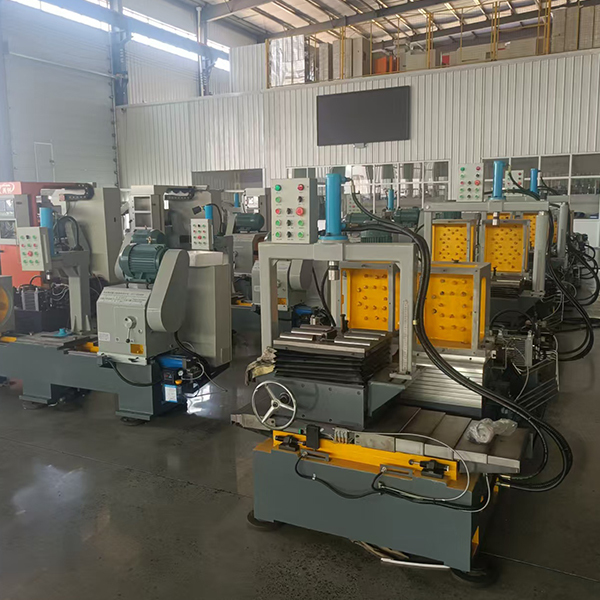

Processed Products

Multi-Hole Drilling And Tapping Machine 0


Multi-Hole Drilling And Tapping Machine 1
