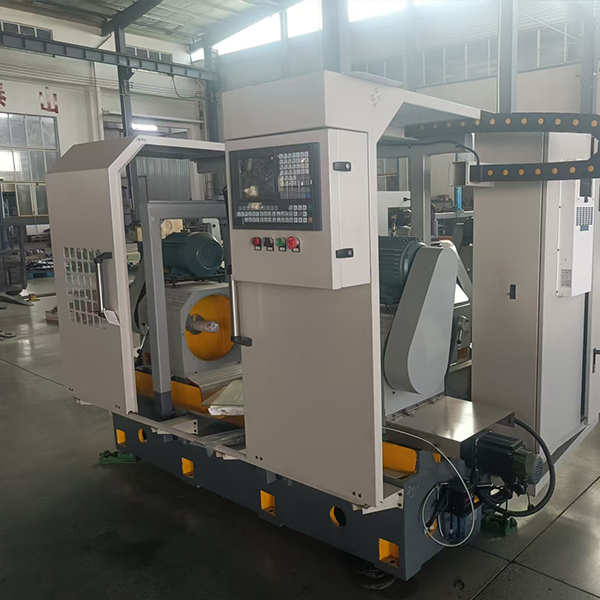

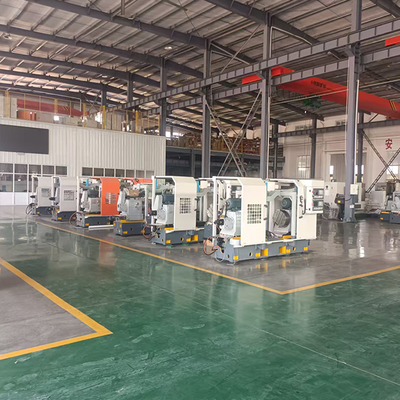

Two Heads CNC Facing Machine Of The Steel Gate Valve Flanges

Detail Information

Place of Origin:

China

Certification:

Maximum Turning Diameter:

φ460-1025

Spindle Speed Range:

72-256 R/min

Servo Motor:

7.7-15 N.m

Surface Roughness:

6.3

X-axis Travel:

170-570 Mm

Z-axis Travel:

280-450 Mm

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Product Description

Vicord Double-Sided CNC Boring & Turning Center is use for all type of valve ,water pump , reducer ,flange ,pipe fittings parts

the main Advantage of the machine is

Simultaneous dual-face machining - Single setup completes both sides (±0.01mm)

Full CNC control - Programmable for complex contours

High-speed precision - Linear guides & 8,000rpm spindles

Mass production ready - 40% faster cycle times

Processing Workpieces:
Engine blocks Turbine discs Pump housings Gearbox components

Core Components:
• Rigid cast iron bed
• Dual spindle units (Ø80-150mm)
• 4-axis rotary table
• Fanuc/Siemens CNC

Industries Served:

Aerospace - Automotive - Energy - Precision molds

Details

Item	Unit	YC III C300HT	YC III C400HT	YC III C600HT	YC III C800HT
Maximum turning diameter	mm	φ460	φ580	φ840	φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
Single-way spindle assembly side length (maximum)	mm	400	600	700	900
Single-way spindle assembly side length (minimum)	mm	150	200	200	250
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Verticality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness	-	6.3	6.3	6.3	6.3
Spindle transmission form	-	4-axis variable speed	9-axis variable speed	2-axis speed change	3-axis variable speed
Spindle speed range	r/min	72–256	69–157	32–47	43–87
Spindle motor model	-	YE2–132M–6–5.5KW	YE2–132M–6–5.5KW	YE2–160L–8–7.5KW	YE2–180L–8–11KW
CNC control system (optional)	-	Nanjing Huaxing—Stepper system	Nanjing Huaxing—Servo system	Guangzhou CNC—stepping system	Guangzhou CNC—Servo system
Feed form (optional)	-	Stepper motor	Stepper motor	Stepper motor	Stepper motor
Servo motor	Nm	7.7N.m	7.7N.m	10N.m	15N.m
Fully protected overall dimensions (length × width × height)	mm	3800×2700×1700	4500×3300×2200	5000×3600×2200	5400×3900×2500
Simple protected overall dimensions (length × width × height)	mm	3500×2600×1700	4350×3200×2200	4800×3500×2200	5200×3800×2500
Machine weight	kg	2800	4000	5700	8500
