Check Valve Milling Turning Lathe With 3 Face Processing

Check Valve Milling Turning Lathe With 3 Face Processing

Brand Name:	Vicord
Model Number:	YCIC 600 HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Turning Diameter:

φ840

Spindle Speed Range:

50 R/min

Servo Motor:

7.7

Surface Roughness:

6.3

X-axis Travel:

170-270 Mm

Voltage:

380V/3PH Can Be Customized

Control System:

CNC

Spindle Taper:

BT40

Function:

Boring And Milling

Warranty:

1 Year

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Product Description

Check Valve Milling Turning Lathe With 3 Face Processing

Vicord CNC Three-Side Lathe is a highly efficient and energy-saving machining solution designed for precision turning of check valves, while also supporting the production of various valves like gate valve, water pumps, fire hydrants, and related fluid control components.

Advantage
High Efficiency – Simultaneous three-side machining reduces cycle time and boosts productivity.
Energy Saving – Optimized motor and drive systems minimize power consumption without sacrificing performance.
Multi-Purpose Machining – Handles a wide range of workpieces, including gate valves, globe valves, pump housings, and hydrant bodies.
Precision & Consistency – Advanced CNC control ensures tight tolerances and repeatability for critical sealing surfaces.
Rigid & Durable – Heavy-duty construction guarantees stability even for hard materials like stainless steel and cast iron.

Application : Oil & gas, water supply, fire protection, and general valve manufacturing.

Optional for extra function
Automation Integration: Robotic loading/unloading for continuous production.
Fixture : Tailored fixtures for complex valve geometries.

Details

Item	Unit	YCIC300HT	YCIC300HT-GLQ	YCIC600HT
Maximum turning diameter	mm	φ460	φ460	φ840
X-axis travel(mm)	mm	170	170	270
Z-axis travel(mm)	mm	395	515	520
Coaxiality(mm)	mm	≤0.1	≤0.1	≤0.15
Parallelism(mm)	mm	≤0.1	≤0.1	≤0.15
Surface roughness	-	6.3	6.3	6.3
Transmission from(Gearshifting)	-	4speed change	4speed change	2 speed change
Spindle speed range	r/min	72–256	69–157	32–47
Spindle motor model	-	YE2–132M–6–5.5KW	YE2–132M–6–5.5KW	YE2–160L–8–7.5KW
CNC control system (optional)	-	Nanjing Huaxing—Stepper system	Nanjing Huaxing—Servo system	Guangzhou CNC—stepping system
Feed form (optional)	-	Stepper motor	Stepper motor	Stepper motor
Actuating motor	Nm	7.7N.m	7.7N.m	10N.m
Fully protected overall dimensions (length × width × height)	mm	2300X1900X1700	2500X1900X1700	3000X2300X2500
Simple protected overall dimensions (length × width × height)	mm	2100X1900X1700	2300X1900X1700	2700X1800X2300
Machine weight	kg	1800	2000	4500

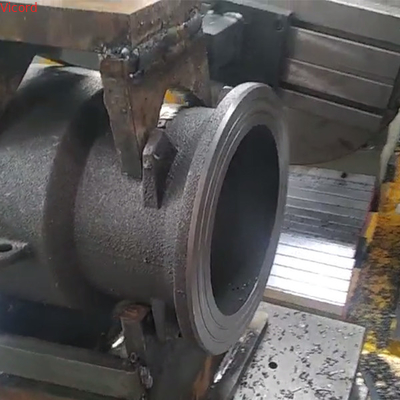

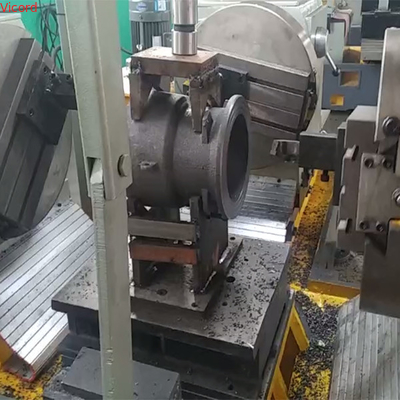

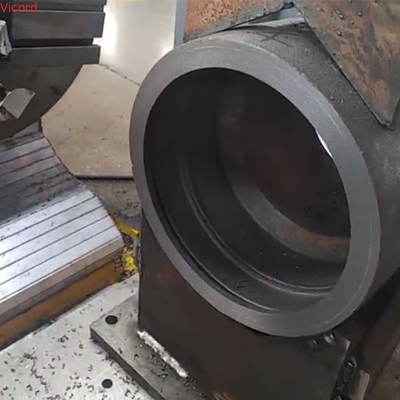

Processed Products

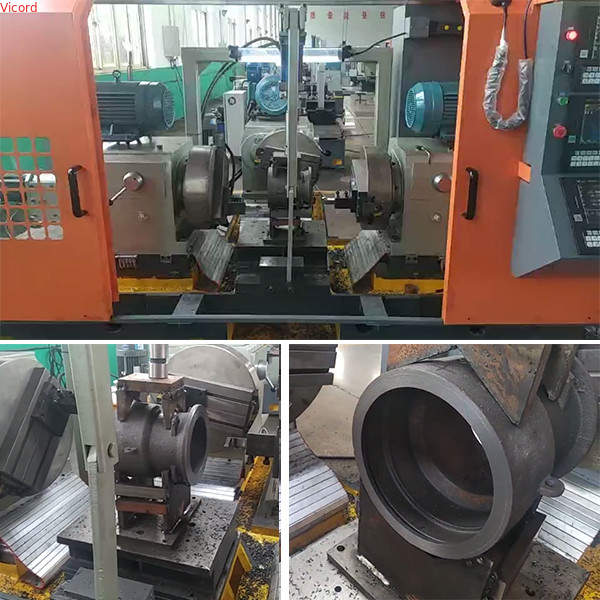

Check Valve Milling Turning Lathe With 3 Face Processing 0

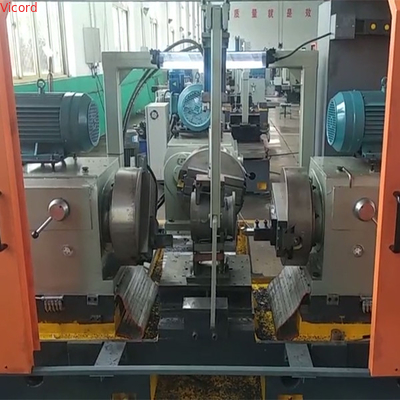

Machine picture
