Gate Valve Machining Line - Truning, Milling And Drilling

name

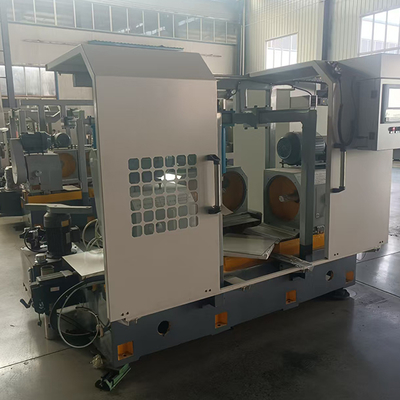

Gate Valve Machining Line - Truning, Milling And Drilling

Brand Name: Vicord
Model Number: YC Z200HT
MOQ: 1
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 30 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Maximum Drilling Center Distance (mm):
295-770
Maximum Machining Length(mm):
600-1000 Mm
Minimum Machining Length(mm):
200-300 Mm
Surface Roughness:
12.5
Spindle Motor Range (r/min):
225/286
Control System:
PLC
Warranty:
1 Year
Type:
Drilling Machine
Material:
Metal
Power Supply:
380V/50Hz
Drilling Depth:
0-50mm
Model:
Double Side
Packaging Details:
Wrap plastic film
Supply Ability:
30 set per month
Product Description

 Gate Valve Machining Line - Truning, Milling And Drilling



Description:

PLC-controlled horizontal dual-spindle machine for simultaneous drilling and tapping of valve components. Features automatic tool positioning for complete processing in one clamping.



Advantage

Dual-spindle design for parallel hole processing

Auto-tapping after drilling (one-clamp operation)

Heavy-duty base & precision worktable

PLC automation with real-time monitoring

Coolant system for optimal tool life





Applications:

• Valves: Bodies/flanges for ball/gate/globe/check valves.



Project YC II Z200HT YC II Z300HT YC II Z400HT YC II Z600HT
Technical specifications ∅295 ∅410 ∅525 ∅770
600 800 800 1000
200 200 300 300
340 450 450 450
moshi2# moshi2#/moshi3# moshi2#/moshi3# moshi2#/moshi3#
Processing accuracy ≤0.5≤0.5 ≤0.6≤0.6 ≤0.8≤0.8 ≤1≤1
12.5 12.5 12.5 12.5
Spindle drive 2 level 2 level 2 level
225/286 197/223 159/231 11KW motor
YE2-132M–6–5.5KW YE2-132M–6–5.5KW YE2-132M–6–7.5KW YE2-180L–8–11KW
control system (optional) PLC
Feed form (optional) Hydraulic drive
Machine shape 2800X1000X1500 3200X1200X1700 3300X1200X1700 3400X1500X2000
Machine weight (kg) 1800 2200 3000





Processed Products



Gate Valve Machining Line - Truning, Milling And Drilling 0






Gate Valve Machining Line - Truning, Milling And Drilling 1
