Six-Station Rotary Table Drilling And Tapping Milling Machine For BFV

Brand Name:	Vicord
Model Number:	YCVIDF100/200HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Processing Working Range:

DN40-DN100

Valve Stem Hole Coaxiality:

0.05-0.1

Symmetry:

0.1

Hole Finish:

1.6

Flange End Face Screw Position:

0.2

Machine Tool Net Weight:

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Product Description

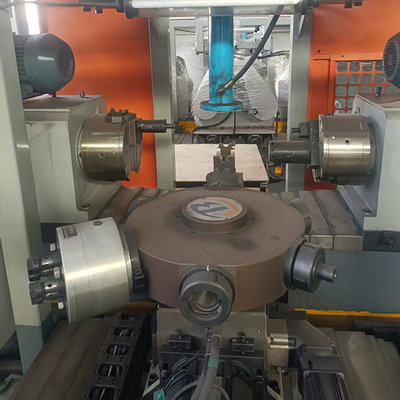

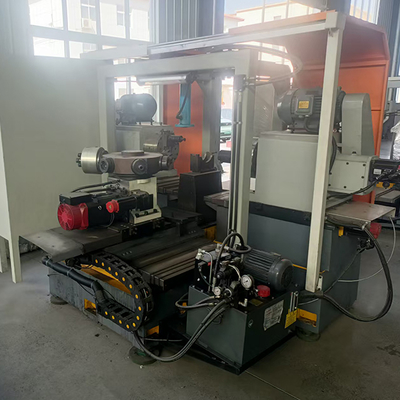

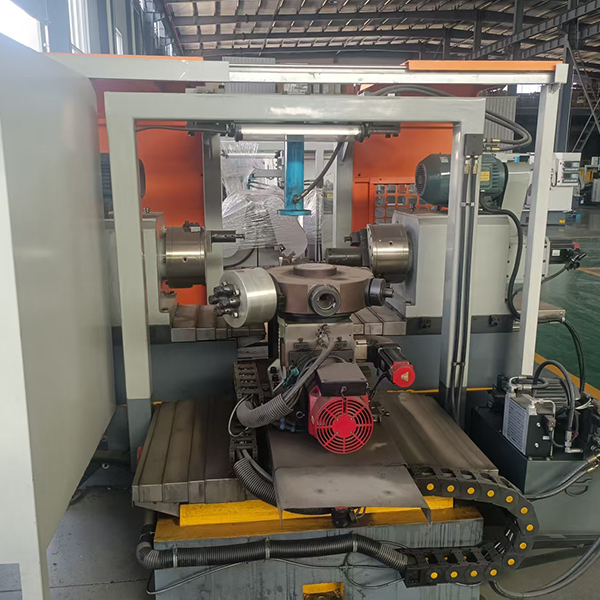

Six-Station Rotary Table Drilling And Tapping Milling Machine For BFV

6-Station CNC Butterfly Valve Machining Center--Vicord Specialized multi-station machine for complete butterfly valve processing. Turntable design enables simultaneous boring ,reaming drilling, milling, and tapping operations across 6 stations, optimizing mass production efficiency.

Advantage

6-Station Turntable - Parallel processing (drilling/milling/tapping)
CNC Automation - Full program control with ±0.01mm precision
Dedicated Tooling - Customized for valve body/disk/flange machining
High-Speed Spindles - (X) rpm with automatic tool changer
Rigid Construction - Precision linear guides & heavy-duty worktable

technical point

Turntable Indexing ≤0.5s/station
Multi-Spindle Heads (Optional: 4/6 stations)
Hydraulic Clamping for 200-600mm valve sizes

Applications

• Butterfly valves (DN50-DN1200)
• Fluid control systems
• Industrial pipeline components

Item	Machine tool specifications	YCVIDF100HT	YCVIDF200HT
Technical Specifications	Processing working range	DN40-DN100	DN100-DN200
	Valve stem hole coaxiality	0.05	0.1
	Symmetry	0.1	0.1
	Hole finish	1.6	1.6
	Flange end face screw position	0.2	0.2
Control System	Standard configuration	Nanjing Huaxing Servo System	Nanjing Huaxing Servo System
Control System	Optional configuration	Guangzhou Servo System	Guangzhou Servo System
Machine Size	Full protection (length x width x height)	2600 x 1600 x 1800	3050 x 2310 x 2000
Machine Weight	Machine tool net weight	7 T	8.5T

Processed Products

Six-Station Rotary Table Drilling And Tapping Milling Machine For BFV 0

Six-Station Rotary Table Drilling And Tapping Milling Machine For BFV 1
