Customized CNC Three-sided Boring And Milling Machine For Ventilation Valves

Customized CNC Three-sided Boring And Milling Machine For Ventilation Valves

Brand Name:	VICORD
Model Number:	YCⅢC300/400/600/800HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

X-axis Travel:

170-570mm

Z-axis Travel:

280-450mm

Transmission Type (gear Speed Change):

4-speed Gearshift

Spindle Speed Range:

32-256

Stepper Motor:

50N.m

Servo Motor:

15N.m

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Ventilation valves CNC milling machine

CNC three-sided boring machine

Customized CNC milling machine

Product Description

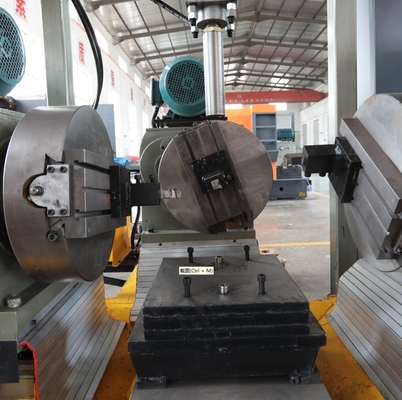

Customized CNC Three-sided Boring And Milling Machine For Ventilation Valves

The customized CNC three-sided boring and milling machine is a specialized CNC machine tool designed for multi-sided boring processing of ventilation valves. Featuring a multi-spindle design, this machine can simultaneously process multiple faces of workpieces, significantly reducing processing time while maintaining high precision and efficiency.

Main Features

High Efficiency: Simultaneously processes three faces of workpieces, completing multiple operations in a single clamping to dramatically reduce processing time and boost productivity. Ideal for high-precision, multi-sided finishing applications.
Enhanced Flexibility: Equipped with a movable worktable for convenient workpiece loading/unloading and position adjustment. Accommodates workpieces of varying sizes and shapes.
Precision Engineering: High-rigidity structural design combined with a precision transmission system ensures long-term stable operation and maintains exceptional machining accuracy.
Multi-functional Capability: Performs diverse operations including boring, drilling, tapping, and milling to handle complex workpiece requirements.

Technical Specifications

Item	Unit	YCⅢC300HT	YCⅢC400HT	YCⅢC600HT	YCⅢC800HT
Maximum turning diameter	mm	Φ460	Φ580	Φ840	Φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
Maximum processing size from intermediate flange to center	mm	400	600	700	900
Minimum processing size from intermediate flange to center	mm	150	200	200	250
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Verticality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness		6.3	6.3	6.3	6.3
Transmission type (gear speed change)		4-speed gearshift	3-speed gearshift	2-speed gearshift	3-speed gearshift
Spindle speed range	r/min	72-256	69-157	32-47	43-87
Spindle motor model		YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-160L-8-7.5KW	YE2-180L-8-11KW
CNC control system (optional)		Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System
Stepper Motor	N.m	24	24	35	50
Servo Motor	N.m	7.7	7.7	10	15
Full protection overall size (L×W×H)	mm	3800×2700×1700	4500×3300×2200	5000×3600×2200	5400×3800×2500
Simple protection size (L×W×H)	mm	3600×2600×1700	4350×3200×2200	4800×3500×2200	5200×3800×2500
Machine weight	Kg	4500	6500	8000	11000
