High Precision Custom Valve Processing Double-sided CNC Boring And Milling Machine

High Precision Custom Valve Processing Double-sided CNC Boring And Milling Machine

Brand Name:	VICORD
Model Number:	YCⅡC300/400/600800HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Coaxiality:

≤0.1

Parallelism:

≤0.1

Surface Roughness:

6.3

Maximum Turning Diameter:

Φ1025

Maximum Processing Length:

1100mm

Minimum Processing Length:

200mm

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

High Precision Boring Milling Machine

Valve CNC Boring Milling Machine

Product Description

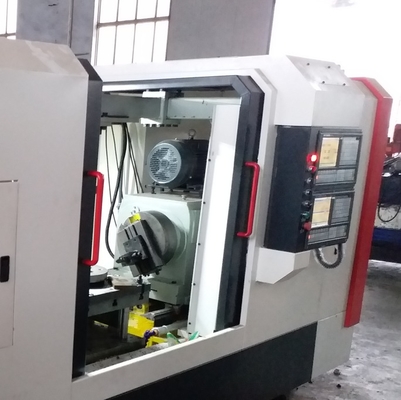

High Precision Custom Valve Processing Double-sided CNC Boring And Milling Machine

This high-precision double-sided CNC boring and milling machine is specially designed for custom valve processing. Controlled by an advanced CNC system, it delivers efficient and accurate double-sided boring operations, making it ideal for production environments demanding superior precision and productivity.

Main Features

Efficient double-sided synchronous processing: Simultaneously processes both sides of workpieces, reducing processing time by over 50% and significantly boosting production efficiency.
High-precision guarantee: CNC system synchronization ensures geometric tolerance of symmetrical features, eliminating deviations from multiple processing.
Multifunctional composite processing: Features multi-axis linkage and automatic tool change capabilities for efficient handling of complex workpieces.
Labor and cost savings: Requires only one set of fixtures for symmetrical workpieces, reducing fixture costs. Automated processing minimizes human error while improving consistency.
Advanced structural design: Servo motor-driven movement with stable precision, special mobile workbench, and double-sided boring/milling axis for drilling, milling, and boring operations within effective stroke range.

Application Areas

Casting valves: gate valves, butterfly valves, check valves, etc.
Casting water pumps: various calibers and shapes
Firefighting industry: fire hydrants and water supply/drainage facilities
Pipe fittings industry: various flange pipe fittings

Technical Specifications

Item	Unit	YCⅡC300HT	YCⅡC400HT	YCⅡC600HT	YCⅡC800HT
Maximum turning diameter	mm	Φ460	Φ580	Φ840	Φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness		6.3	6.3	6.3	6.3
Transmission type (gear speed change)		4-speed gearshift	3-speed gearshift	2-speed gearshift	3-speed gearshift
Spindle speed range	r/min	72-256	69-157	32-47	43-87
Spindle motor model		YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-160L-8-7.5KW	YE2-180L-8-11KW
CNC control system (optional)		Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System
Stepper Motor	N.m	24	24	35	50
Servo Motor	N.m	7.7	7.7	10	15
Full protection overall size (L×W×H)	mm	3800×1500×1700	4500×1800×2200	5000×1800×2200	5400×2300×2500
Simple protection size (L×W×H)	mm	3600×1500×1700	4350×1800×2200	4800×1800×2200	5200×2300×2500
Machine weight	Kg	2800	4000	5700	8500
