Customized Three Sided CNC Boring And Milling Machine For Fire Hydrant Processing

Customized Three Sided CNC Boring And Milling Machine For Fire Hydrant Processing

Brand Name:	VICORD
Model Number:	YCⅢC300/400/600/800HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

X-axis Travel:

170-570mm

Z-axis Travel:

280-450mm

Transmission Type (gear Speed Change):

4-speed Gearshift

Spindle Speed Range:

32-256

Stepper Motor:

50N.m

Servo Motor:

15N.m

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Fire Hydrant Boring Milling Machine

CNC Boring And Milling Machine

Customized Boring Milling Machine

Product Description

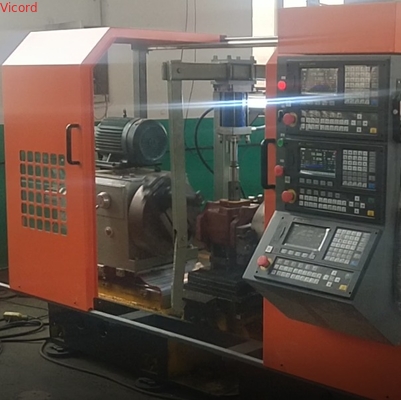

Customized Three Sided CNC Boring And Milling Machine For Fire Hydrant Processing

Product Description

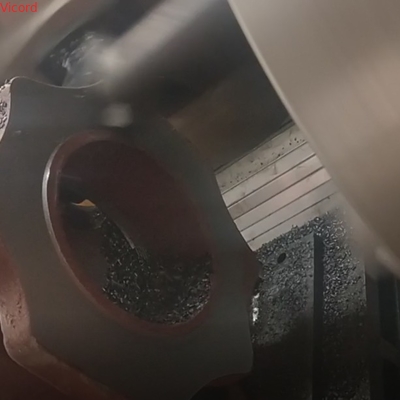

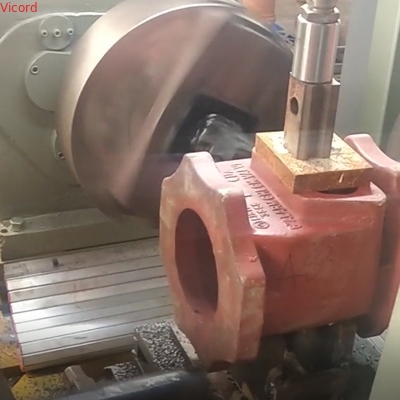

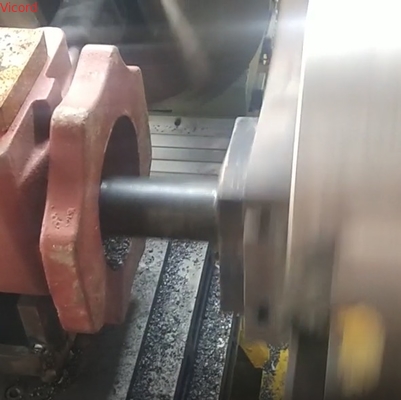

This multifunctional three-sided CNC boring and milling machine is specially designed for fire hydrant processing. Utilizing advanced CNC technology, it precisely controls tool cutting and feed amounts to achieve high-precision machining. The multi-spindle design enables simultaneous processing of multiple workpiece faces, significantly reducing processing time while maintaining exceptional accuracy.

Main Features

High Efficiency: Processes three workpiece faces simultaneously, completing multiple operations in one clamping cycle to maximize productivity.
Enhanced Flexibility: Features a movable worktable for easy workpiece loading/unloading and position adjustment, accommodating various sizes and shapes.
Precision Engineering: Equipped with precision guide rails to minimize friction and ensure stable motion, plus constant temperature cooling to reduce thermal deformation.
Multi-Functional: Capable of boring, drilling, tapping, and milling operations to handle complex workpiece requirements.
Intelligent Operation: Advanced CNC system enables automated, intelligent processing with reduced operator intervention.

Application Fields

Casting valves (gate valves, butterfly valves, check valves)
Casting water pumps of various calibers
Fire protection industry components
Pipe fittings and flange production

Technical Specifications

Item	Unit	YCⅢC300HT	YCⅢC400HT	YCⅢC600HT	YCⅢC800HT
Maximum turning diameter	mm	Φ460	Φ580	Φ840	Φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
Maximum processing size from intermediate flange to center	mm	400	600	700	900
Minimum processing size from intermediate flange to center	mm	150	200	200	250
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Verticality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness		6.3	6.3	6.3	6.3
Transmission type (gear speed change)		4-speed gearshift	3-speed gearshift	2-speed gearshift	3-speed gearshift
Spindle speed range	r/min	72-256	69-157	32-47	43-87
Spindle motor model		YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-160L-8-7.5KW	YE2-180L-8-11KW
CNC control system (optional)		Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System
Stepper Motor	N.m	24	24	35	50
Servo Motor	N.m	7.7	7.7	10	15
Full protection overall size (L×W×H)	mm	3800×2700×1700	4500×3300×2200	5000×3600×2200	5400×3800×2500
Simple protection size (L×W×H)	mm	3600×2600×1700	4350×3200×2200	4800×3500×2200	5200×3800×2500
Machine weight	Kg	4500	6500	8000	11000
