Customized CNC Boring And Milling Machine For Processing Silencer Check Valves

Customized CNC Boring And Milling Machine For Processing Silencer Check Valves

Brand Name:	VICORD
Model Number:	YCⅠZ200HT，YCⅠZ300HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Maximum Drilling Center Distance(mm):

Φ410

Maximum Processing Length From The Center Of The Two End Flanges To The Middle Flange End Face(mm):

350

Transmission Type (gear Speed Change):

2- Speed Change

Spindle Motor Model:

YE2-132M-6-5.5KW

Feeding Mode:

Hydraulic Transmission

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Customized CNC boring milling machine

CNC boring and milling machine

processing silencer check valves machine

Product Description

Customized CNC Boring And Milling Machine For Processing Silencer Check Valves

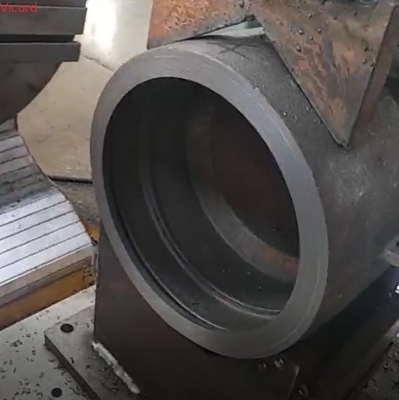

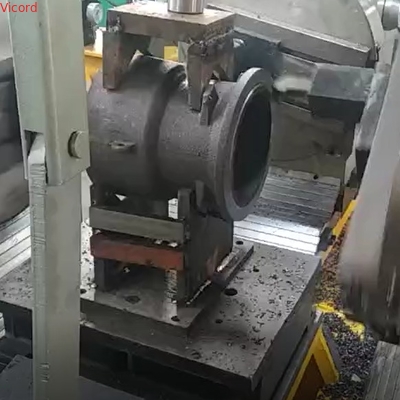

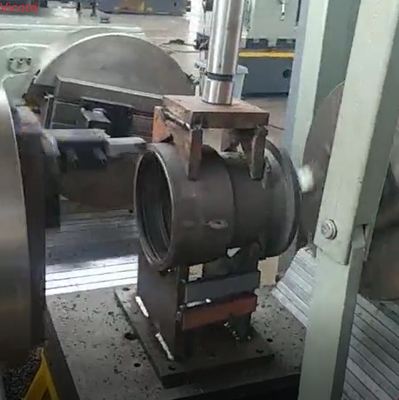

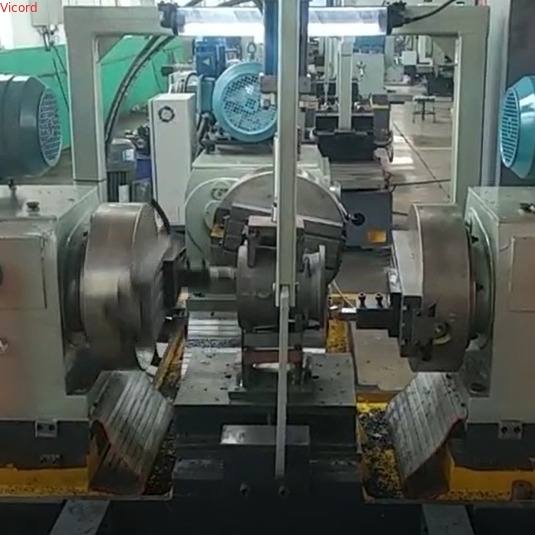

The three-sided CNC boring machine is a specialized CNC machine tool designed for multi-sided boring operations. This precision machining process is ideal for creating high-accuracy holes and inner diameter surfaces, particularly suited for demanding production environments requiring both precision and efficiency.

Key Features

Three-sided boring capability for simultaneous processing of multiple workpiece surfaces
CNC-controlled operation for automated, high-efficiency production
Advanced CNC system and precision mechanical structure ensure exceptional machining accuracy

Core Components

Bed: Provides structural support and stability during operation
Spindle: Triple-spindle configuration enables simultaneous three-surface machining
Worktable: Adjustable positioning with rotation/movement capabilities for diverse machining requirements
Control System: Programmable CNC system for precise process control

Industrial Applications

Valve manufacturing (gate valves, butterfly valves, check valves)
Water pump components of various sizes and configurations
Fire protection system components including hydrants
Pipe fitting production, particularly flange components

Technical Specifications

Item	Unit	YCⅢC300HT	YCⅢC400HT	YCⅢC600HT	YCⅢC800HT
Maximum turning diameter	mm	Φ460	Φ580	Φ840	Φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
Maximum processing size from intermediate flange to center	mm	400	600	700	900
Minimum processing size from intermediate flange to center	mm	150	200	200	250
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Verticality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness		6.3	6.3	6.3	6.3
Transmission type (gear speed change)		4-speed gearshift	3-speed gearshift	2-speed gearshift	3-speed gearshift
Spindle speed range	r/min	72-256	69-157	32-47	43-87
Spindle motor model		YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-160L-8-7.5KW	YE2-180L-8-11KW
CNC control system (optional)		Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System
Stepper Motor	N.m	24	24	35	50
Servo Motor	N.m	7.7	7.7	10	15
Full protection overall size (Length×width ×height)	mm	3800×2700×1700	4500×3300×2200	5000×3600×2200	5400×3800×2500
Simple protection size (Length×width ×height)	mm	3600×2600×1700	4350×3200×2200	4800×3500×2200	5200×3800×2500
Machine weight	Kg	4500	6500	8000	11000
