Customized Three-sided CNC Boring And Milling Machine For Processing Filters

Customized Three-sided CNC Boring And Milling Machine For Processing Filters

Brand Name:	VICORD
Model Number:	YCⅢC300/400/600/800HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

X-axis Travel:

170-570mm

Z-axis Travel:

280-450mm

Transmission Type (gear Speed Change):

4-speed Gearshift

Spindle Speed Range:

32-256

Stepper Motor:

50N.m

Servo Motor:

15N.m

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Three-sided Boring Milling Machine

Customized CNC Boring Milling Machine

Customized Boring Milling Machine

Product Description

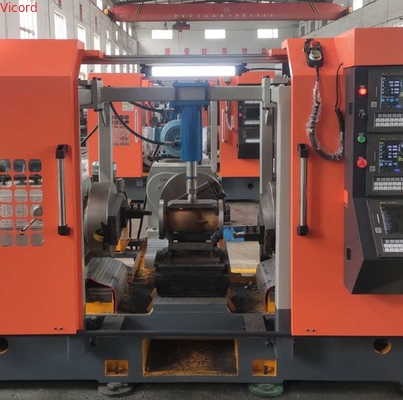

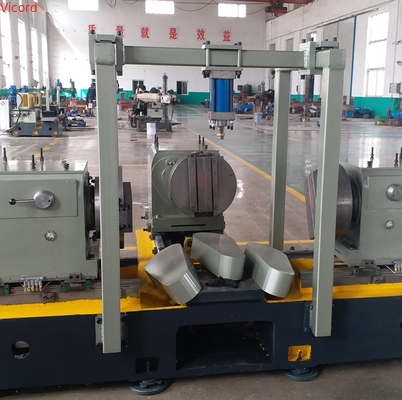

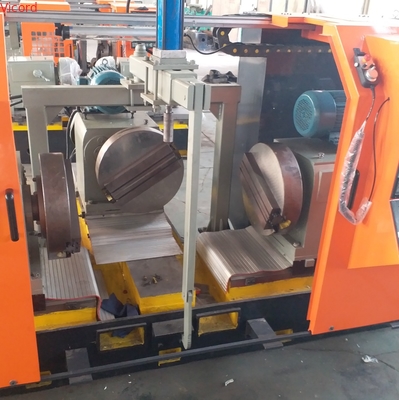

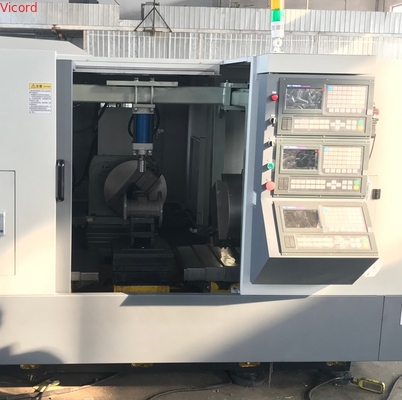

Customized Three-sided CNC Boring And Milling Machine For Processing Filters

The CNC three-sided boring and milling machine for processing T-type filters is a specialized CNC machine tool designed for multi-sided boring operations. Utilizing advanced CNC technology to control tool cutting and feed rates, it delivers high-precision machining. The multi-spindle design enables simultaneous processing of multiple workpiece faces, significantly reducing cycle times while maintaining exceptional accuracy.

Key Features

High Efficiency: Processes three faces simultaneously with multiple operations completed in single clamping, dramatically reducing cycle times and boosting productivity.
Enhanced Flexibility: Features a movable worktable for easy workpiece loading/unloading and position adjustment, accommodating various sizes and shapes.
Precision Engineering: Incorporates precision guide rail systems (rolling/hydrostatic/linear guides) to minimize friction and ensure motion stability. High-speed spindle with temperature-controlled cooling reduces thermal deformation.
Multi-Functional: Capable of boring, drilling, tapping, milling and other operations to handle complex machining requirements.
Intelligent Operation: Advanced CNC system enables fully automated processing with simple program input, reducing operator skill requirements.

Applications

Casting valves: gate valves, butterfly valves, check valves
Casting water pumps: various calibers and configurations
Fire protection systems: hydrants and water supply components
Pipe fittings industry: flange connections and related components

Technical Specifications

Item	Unit	YCⅢC300HT	YCⅢC400HT	YCⅢC600HT	YCⅢC800HT
Maximum turning diameter	mm	Φ460	Φ580	Φ840	Φ1025
Maximum processing length	mm	600	800	1000	1100
Minimum processing length	mm	200	300	300	400
Maximum processing size from intermediate flange to center	mm	400	600	700	900
Minimum processing size from intermediate flange to center	mm	150	200	200	250
X-axis travel	mm	170	270	450	570
Z-axis travel	mm	280	395	450	450
Coaxiality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Parallelism	mm	≤0.1	≤0.1	≤0.15	≤0.2
Verticality	mm	≤0.1	≤0.1	≤0.15	≤0.2
Surface roughness		6.3	6.3	6.3	6.3
Transmission type (gear speed change)		4-speed gearshift	3-speed gearshift	2-speed gearshift	3-speed gearshift
Spindle speed range	r/min	72-256	69-157	32-47	43-87
Spindle motor model		YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-160L-8-7.5KW	YE2-180L-8-11KW
CNC control system (optional)		Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System
Stepper Motor	N.m	24	24	35	50
Servo Motor	N.m	7.7	7.7	10	15
Full protection overall size (L×W×H)	mm	3800×2700×1700	4500×3300×2200	5000×3600×2200	5400×3800×2500
Simple protection size (L×W×H)	mm	3600×2600×1700	4350×3200×2200	4800×3500×2200	5200×3800×2500
Machine weight	Kg	4500	6500	8000	11000
