Special CNC Six Position Rotary Table Machine For Butterfly Valve Stem Hole Flange Machining

Name: Special CNC Six Position Rotary Table Machine For Butterfly Valve Stem Hole Flange Machining
Brand: Hebei Yuchuang Heavy Industry Machinery Co., Ltd
SKU: YCVIDF200HT
Availability: InStock

Brand Name:	VICORD
Model Number:	YCVIDF200HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Table Size:

3050mm×2310mm×2000mm

Weight:

8.5T

Processing Workpiece Range:

DN100-DN200

Control System:

CNC

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

CNC rotary table machine for valve machining

six position rotary table for flange boring

butterfly valve stem hole milling machine

Product Description

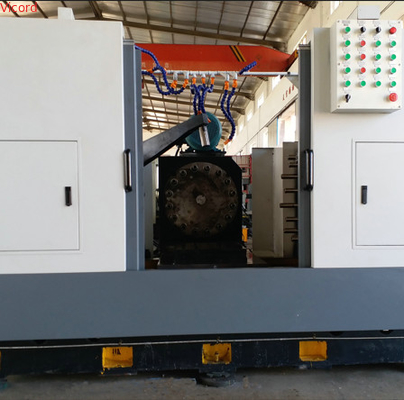

Special CNC Six Position Rotary Table Machine For Butterfly Valve Stem Hole Flange Machining

High-Efficiency Specialized Processing Equipment

For butterfly valve manufacturing—where precision of stem holes, flange surfaces, and hole positions directly affects valve sealing and operation—our CNC Six-Position Butterfly Valve Rotary Table Machine is a targeted solution. It integrates multi-process processing into one clamping via a six-station design, delivering high efficiency, stable precision, and versatile performance to streamline butterfly valve production workflows.

Core Advantages: Tailored for Butterfly Valve Processing Needs

This machine addresses key pain points in butterfly valve manufacturing, with advantages optimized for practical production demands:

Six-Station Design for High-Efficiency Processing: Equipped with a servo-controlled six-station rotary table, it enables simultaneous completion of multiple processes (e.g., stem hole drilling, flange surface milling, butterfly hole positioning) in a single workpiece clamping.
Strong Versatility for Multi-Process Needs: Specifically designed to handle core butterfly valve processing tasks, including stem hole machining, flange surface drilling, and butterfly hole positioning.
High Precision & Stability for Reliable Quality: Features high-quality gray cast iron bed construction and guide rail surfaces processed with ultrasonic quenching for enhanced durability and precision.

Detailed Technical Parameters

Two models available for different butterfly valve sizes:

Project	Machine Specifications	YCVIDF100HT	YCVIDF200HT
Technical Specifications	Processing workpiece range (butterfly valve DN)	DN40–DN100	DN100–DN200
	Stem hole coaxiality (mm)	0.05	0.10
	Symmetry (mm)	0.10	0.10
	Hole finish (Ra)	1.6	1.6
	Flange end face butterfly hole position (mm)	0.20	0.20
	Control System - Standard configuration	Nanjing Huaxing Servo System
Control System - Select configuration		Guangzhou Servo System
Machine tool appearance (LengthWidthHeight, mm)		260016001800	305023102000
Machine net weight (T)		7T	8.5T

Practical Value for Butterfly Valve Manufacturers

Cost Savings: Reduces process steps and labor input, lowering per-unit production costs.
Quality Assurance: Stable precision ensures each butterfly valve meets design requirements.
Space Adaptability: Compact dimensions fit easily into standard valve manufacturing workshops.

Customize to Your Butterfly Valve Production

Whether you need to process small butterfly valves (DN40–DN100) with the YCVIDF100HT or larger ones (DN100–DN200) with the YCVIDF200HT, we can adjust control system configurations to match your workshop's existing equipment. Contact our team for more details on test machining, on-site demos, or parameter adjustments.
