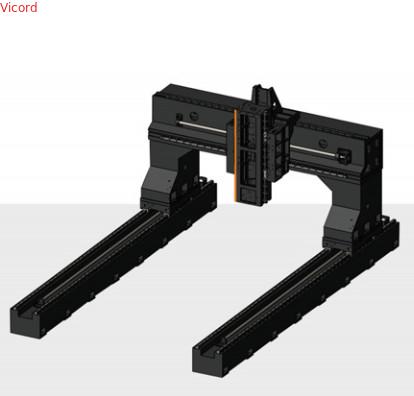

Split CNC Gantry Drill Gantry Drilling Machine With Kaiendi K1000MFli Control System

Name: Split CNC Gantry Drill Gantry Drilling Machine With Kaiendi K1000MFli Control System
Brand: Hebei Yuchuang Heavy Industry Machinery Co., Ltd
SKU: YCLMZ-5000
Availability: InStock

Brand Name:	Vicord
Model Number:	YCLMZ-5000
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

SPLI CNC GANTRY DRILLING MA...ET.pdf

Maximum Drilling Diameter:

X-axis Stroke:

5000

Y-axis Stroke:

5000

Z-axis Stroke:

600

T-slot Spacing:

300

Control System:

Kaiendi K1000MFli

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Highlight:

Split CNC gantry drilling machine

Gantry drill with Kaiendi control

CNC gantry drill with warranty

Product Description

Split CNC Gantry Drill With Kaiendi K1000MFli Control System

This large-scale CNC equipment is specifically designed for oversized workpiece processing, featuring a modular split design, high rigidity structure, and multi-functional capabilities. It addresses transportation and installation challenges while meeting high-precision machining requirements for industries including shipbuilding, wind power, and heavy machinery.

Core Advantages

Split Modular Design: Components including gantry frame, spindle box, and worktable can be transported separately, reducing transportation costs by 30-40% compared to integrated models.
Super Large Processing Capacity: X/Y-axis travel of 5000×5000mm with maximum drilling diameter of φ70 (U drill) for extra-large workpieces without splitting requirements.
High Rigidity Structure: Dual-column + beam gantry frame made of high-strength cast iron with positioning accuracy ±0.05mm and repeatability ±0.02mm.
Kaiendi K1000MFli Control System: Supports automated programming, tool length compensation, and real-time machining monitoring, reducing manual intervention by over 60%.

Key Applications

Shipbuilding Industry

Processes large ship hull plates, keel components, and deck support structures with 5000×5000mm processing range for accurate drilling of mounting holes.

Wind Power Industry

Handles wind turbine main shaft flanges and tower cylinder connecting plates with φ70 drilling capacity and ±0.02mm repeatability for consistent hole spacing.

Heavy Machinery Industry

Machines large frames for excavators and loaders with multi-functional capability (drilling + milling + boring) in single setup.

Aerospace Industry

Processes oversized aerospace structural parts with precise control for complex hole systems meeting aerospace-grade standards.

Technical Specifications: Model YCLMZ-5000

Specification	Details	Application
Spindle Type	BT50	Compatible with high-strength tools
Maximum Drilling Diameter	φ70 (U drill)	Large hole needs for wind turbine flanges
X/Y-axis Travel	5000×5000mm	Covers oversized workpieces
Z-axis Travel	600mm	Handles thick workpieces
Positioning Accuracy	±0.05mm	Accurate hole positioning
Repeatability	±0.02mm	Batch consistency
Control System	Kaiendi K1000MFli	Automated multi-process programming

Production Benefits

Reduces project lead time by 2-3 weeks through split design

Lowers processing costs by 25-30% by replacing multiple machines

Improves product qualification rate from 8-10% to ≤2%

Customization Options

Processing range expansion up to 6000×6000mm
Automatic tool changer (ATC) for batch processing
Rotary worktable for cylindrical large parts
