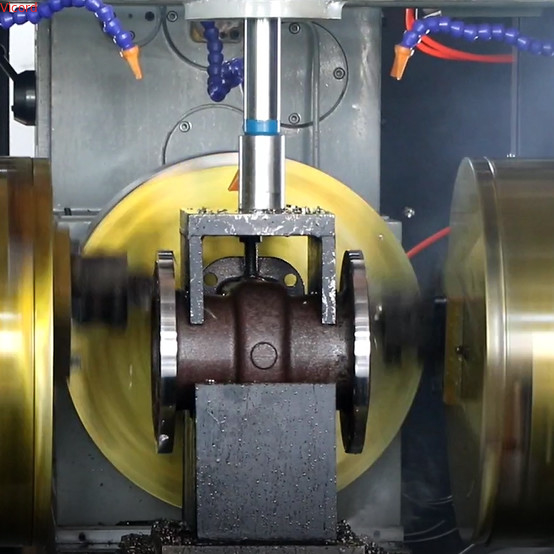

Horizontal Processing Drilling and Winching Machine

This machine's strengths address the unique needs of multi-process small-part machining, balancing efficiency, precision, and usability:

• One-Clamping Multi-Process: Cut Setup Time to Zero

  Integrates end face milling, drilling, backside countersinking, and tapping into a single clamping. Reduces processing time by over 40% compared to traditional multi-machine operations.

• Mechatronic Design + CNC Feed: Stable High Precision

  Adopts ball linear guides with high rigidity and wear resistance, paired with CNC-controlled slide feeding. The X/Y/Z axis travels (500mm/350mm/450mm) ensure precise positioning.

• 6-Spindle Turret Head: Fast Tool Switching

  The turret head is equipped with 6 pivot shafts, allowing quick switching between milling cutters, drills, countersinks, and taps. Reduces tool change time by 60%.

• User-Friendly Design: Low Operational Threshold

  Features a reasonable structural layout and easy-to-operate controls, with volumetric automatic lubrication for the machine—eliminating the need for manual lubrication.

This machine excels in machining small-to-medium precision parts across light industry, hardware, and electronics:

• Precision Hardware Manufacturing: Small Mechanical Fittings
• Electronic Component Industry: Housing & Bracket Machining
• Light Industrial Part Production: Daily Hardware & Auto Small Parts
• Instrument & Meter Industry: Precision Component Machining

• Batch Production Efficiency: Daily output of 500-800 small parts—doubling efficiency compared to traditional processing.
• Cost Savings: Saves 50% of equipment investment and 30% of workshop space.
• Quality Consistency: Reduces batch part size deviation to ±0.02mm, lowering scrap rates to ≤2%.

For special small-part machining requirements, we offer targeted customizations:

• Tool Configuration: Add a tool length detector for ultra-precise tool setting.
• Worktable Upgrade: Replace with a pneumatic clamping worktable for faster workpiece clamping.
• Control System Optimization: Adjust CNC parameters to match specific materials.

Contact our team to request sample processing tests or detailed operational demonstrations—we're committed to optimizing your small-to-medium precision part machining workflow.
