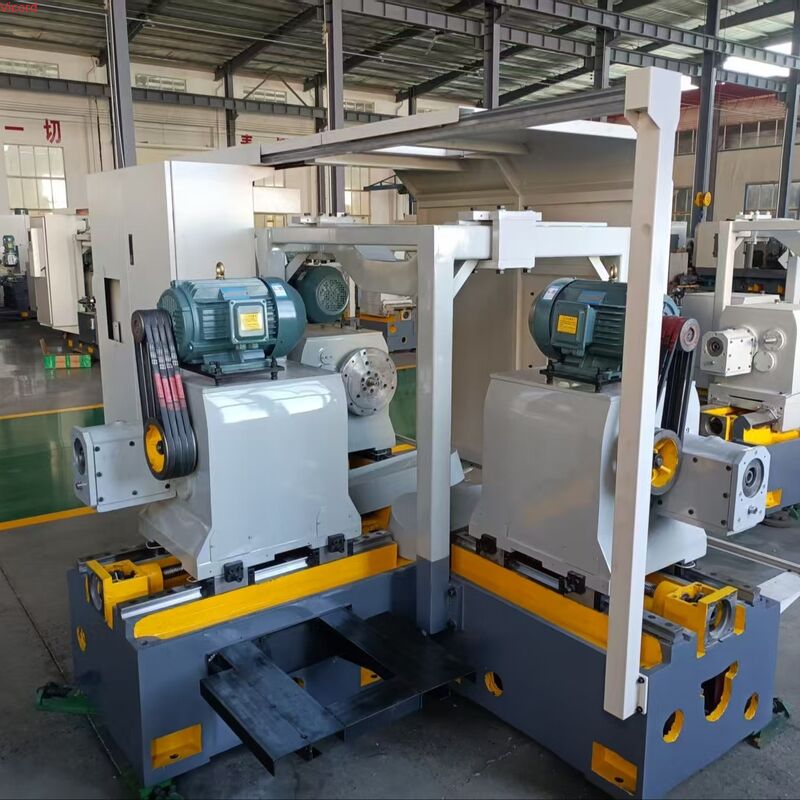

3 face CNC milling turning reaming drilling tapping Machine for valve

Brand Name:	Vicord
Model Number:	YC3side
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500 units/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Number Of Pivot Shafts For The Turret Head:

Connection Method Between Turret Head Spindle And Cutting Tool:

ER40snap Ring

Feed Motor:

Servo Motor Feeding

Lubrication Form Of Machine Tool:

Volumetric Automatic

Machine Tool Appearance:

2000x1600x1850mm

Packaging Details:

Wooden box or plastic film packaging

Supply Ability:

500 units/year

Highlight:

3 face CNC milling machine for valve

CNC turning drilling machine with warranty

CNC tapping reaming machine for valves

Product Description

3 Face CNC Milling Turning Reaming Drilling Tapping Machine for Valve

In the fields of valve body and valve plate component manufacturing, precision hardware processing, and light industrial parts production, our three-sided CNC lathe can complete all these processes in a single setup, including end milling, chamfering, and tapping. Utilizing mechatronics design and CNC technology, it provides high precision and consistency for workpieces, thereby improving production efficiency.

Core Advantages: Tailored for Integrated Small-Part Machining

This machine is specifically designed to meet the special needs of multi-process valve body and valve disc machining, achieving an excellent balance between efficiency, precision, and ease of use:

One-time clamping, multi-process integration: Integrates end milling, drilling, back counterboring, and tapping into a single clamping operation. Compared to traditional multi-machine collaboration, machining time is reduced by over 40%.
Mechatronics co-design + CNC feed: High-precision and stable output: Employs high-rigidity, wear-resistant ball linear guides paired with CNC slide feed. X/Y/Z axis travel (500mm/350mm/450mm) ensures precise positioning.
User-friendly design: Low operating threshold: With a rational structural layout and simple operation, it is equipped with a volumetric automatic lubrication system, eliminating the need for manual lubrication.

Key Application Scenarios: Focus on Small-to-Medium Precision Parts

This machine excels in machining small-to-medium precision parts across light industry, hardware, and electronics:

Precision Hardware Manufacturing: Small Mechanical Fittings
Electronic Component Industry: Housing & Bracket Machining
Light Industrial Part Production: Daily Hardware & Auto Small Parts
Instrument & Meter Industry: Precision Component Machining

Detailed Technical Parameters: Model YCWJ400 Core Configuration

Project	Machine Tool Specifications (YCWJ400)	Application Adaptation
Worktable & Turret	Workbench dimensions: 450×450mm Rotary table size: 320×320mm Turret head pivot shaft quantity: 6	Clamps single large small parts or multiple small parts for batch processing Enables multi-angle machining of irregular small parts Supports quick switching of up to 6 tools
Axis Travel & Machining Capacity	X-axis: 500mm Y-axis: 350mm Z-axis: 450mm Max drilling diameter: φ25 Max tapping diameter: φ20	Covers most small-to-medium part dimensions Meets drilling needs for small part installation holes Covers common thread sizes for small parts
Motor & Drive	Feed motor type: Servo motor X-axis motor: 130SY-M-10 (1.6KW) Y-axis motor: 130SY-M-7.7 (1.6KW) Main motor: 4KW Total power: 11KW	Ensures precise axis positioning Provides sufficient torque for heavy cutting Balances precision and power Delivers stable power for various materials
Machine Dimensions & Weight	2000×1600×1800mm Weight: 2500KG	Compact size, fits small workshops Ensures stability during machining

Practical Value for Production

Batch Production Efficiency: Daily output of 500-800 small parts—doubling efficiency compared to traditional processing.
Cost Savings: Saves 50% of equipment investment and 30% of workshop space.
Quality Consistency: Reduces batch part size deviation to ±0.02mm, lowering scrap rates to ≤2%.

Customization for Specific Needs

For special small-part machining requirements, we offer targeted customizations:

Tool Configuration: Add a tool length detector for ultra-precise tool setting.
Worktable Upgrade: Replace with a pneumatic clamping worktable for faster workpiece clamping.
Control System Optimization: Adjust CNC parameters to match specific materials.

Contact our team to request sample processing tests or detailed operational demonstrations—we're committed to optimizing your small-to-medium precision part machining workflow.
