High-precision double-sided flange multi-axis CNC side hole drilling machine

Detail Information

CNC Control System:

PLC

Feeding Mode:

Hydraulic Transmission

Drill Bit Connection Method (Morse Taper Shank):

Mohs2#/Mohs3#

Stroke(mm):

340/450

Maximum Processing Length:

1000(mm)

Minimum Processing Length:

200(mm)

Packaging Details:

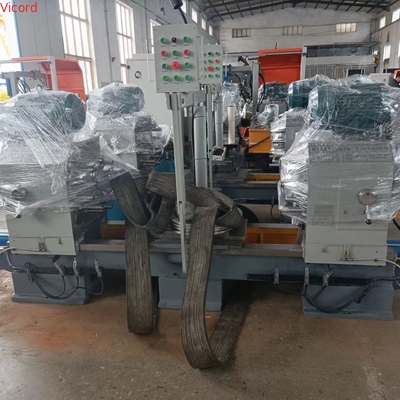

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Multi-hole Drilling Machine

Product Description

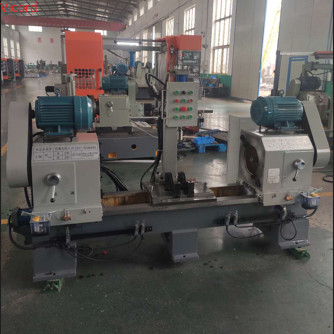

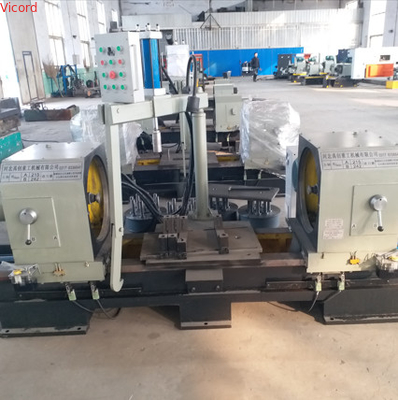

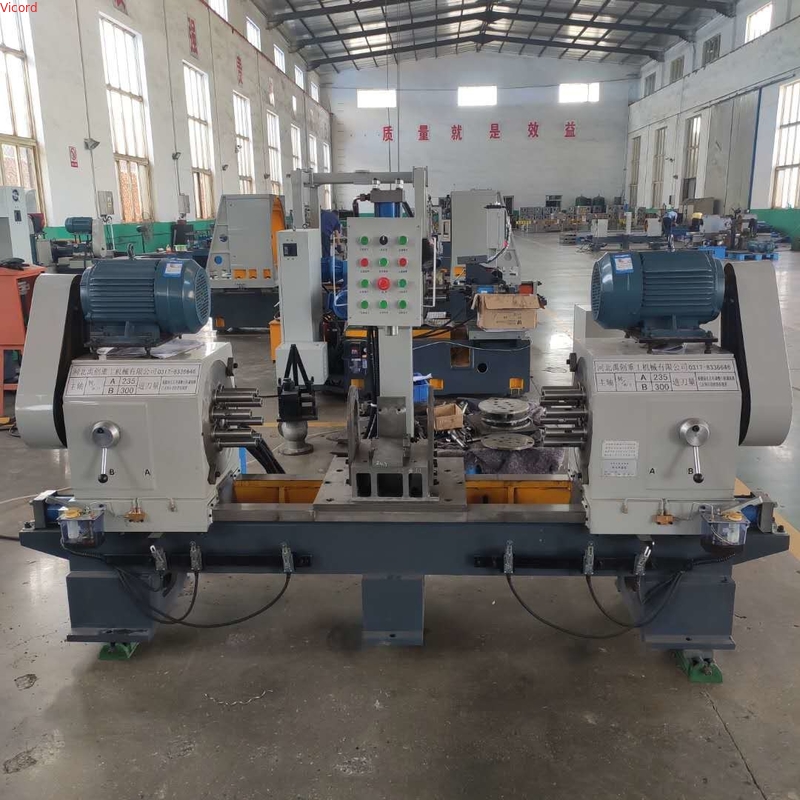

High-Precision Double-Sided Flange Multi-Axis CNC Side Hole Drilling Machine

Product Description

Non-standard valves and pipe fittings double-sided multi-hole drilling machine designed for high-efficiency precision machining.

Main Features

Efficiency: Simultaneous processing of both workpiece sides with multiple drill bits eliminates manual turning, significantly reducing processing time.
Precision: Advanced CNC system and precise transmission mechanism ensure drilling accuracy and consistency while minimizing workpiece handling errors.
Flexibility: Customizable configurations including drill bit quantity and type adjustments to accommodate various complex drilling requirements.
Operational Stability: Robust structural design maintains stable performance during high-speed operation, ensuring safety and equipment longevity.
Versatility: Dual-function capability for both drilling and milling operations through conversion functionality.
Structural Design: Available in horizontal or vertical configurations with multiple drill bits for simultaneous multi-hole processing.

Application Areas

Casting valves: Gate valves, butterfly valves, check valves, etc.
Casting water pumps: Various caliber and shape configurations
Firefighting industry: Water supply and drainage facilities including fire hydrants
Pipe fittings industry: Flange elbow pipe fittings of all types

Technical Specifications

Technical Specifications	YCⅡZ200HT	YCⅡZ300HT	YCⅡZ400HT	YCⅡZ600HT
Maximum drilling center distance (mm)	Φ295	Φ410	Φ525	Φ770
Maximum processing length (mm)	600	800	800	1000
Minimum processing length (mm)	200	300	300	400
Stroke (mm)	340	450	450	450
Drill bit connection method (Morse taper shank)	Mohs2#	Mohs2#/Mohs3#	Mohs2#/Mohs3#	Mohs2#/Mohs3#
Position accuracy (mm)	≤0.5	≤0.6	≤0.8	≤1
Surface roughness	12.5	12.5	12.5	12.5
Spindle speed range (r/min)	225/286	197/223	159/231	11KWGearmotor
Spindle motor model	YE2-132M-6-5.5KW	YE2-132M-6-5.5KW	YE2-132M-6-7.5KW	YE2-180L-8-11KW
CNC control system	PLC
Feeding mode	Hydraulic transmission
Machine dimensions (L×W×H) (mm)	2800×1000×1500	3200×1200×1700	3300×1200×1700	3400×1500×2000
Machine weight (KG)	1500	1800	2200	3000
