Single Sided double side Multi Hole Drilling Machine without drilling head

Brand Name:	Vicord
Model Number:	drilling-1
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Drilling Center Distance (mm):

295-770

Maximum Machining Length(mm):

600-1000 Mm

Minimum Machining Length(mm):

200-300 Mm

Surface Roughness:

12.5

Spindle Motor Range (r/min):

225/286

Control System:

PLC

Packaging Details:

Wrap plastic film

Supply Ability:

30 set per month

Highlight:

single sided drilling machine without head

double side multi hole drilling machine

drilling machine without drilling head

Product Description

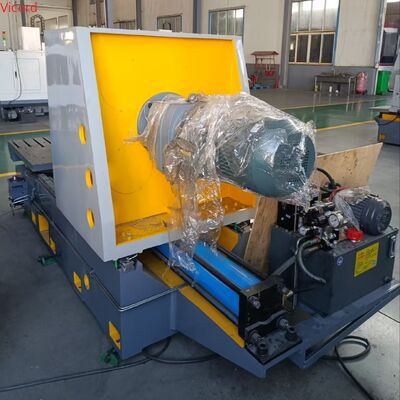

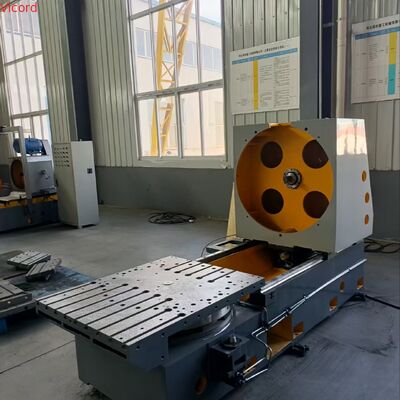

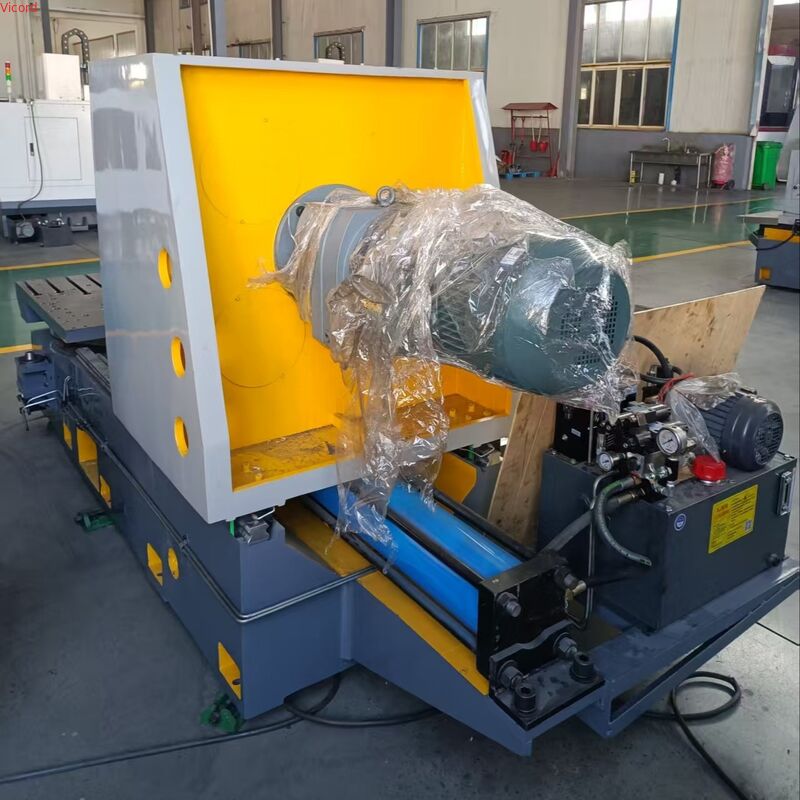

Single Sided Double Side Multi Hole Drilling Machine

This multi-head drilling machine is a highly efficient machine tool specifically designed to perform multiple drilling operations simultaneously on the same side of a workpiece, significantly boosting production efficiency.

Core Strengths

Multiple-Hole Drilling: Specializes in precise single or double side multiple-hole drilling of workpieces
Precision Control: Equipped with an advanced PLC control system to ensure high accuracy and consistent machining results
Wide Applicability: Suitable for various manufacturing sectors including automotive, general machinery, and electronic equipment valves

Main Structure

Sturdy Bed: Provides rigidity and a stable foundation for the entire machine
Multi-Spindle Headstock: Integrates multiple powered spindles to accurately drive each drill bit
Adjustable Worktable: Fitted with positioning devices for flexible and secure workpiece clamping

Operational Highlights

Dramatically Increased Efficiency: Simultaneous multi-hole machining significantly improves production cycle time and output capacity
Guaranteed Precision: Relies on a sophisticated control system to ensure tight hole position tolerances and highly consistent machining quality
Automated Ease of Use: Reduces reliance on manual labor, minimizes operational errors, and ensures more stable and reliable operation
Material Versatility: Offers good material adaptability, capable of handling complex workpiece machining requirements

Typical Application Areas

Automotive Industry: Precision machining of engine components, transmission parts, etc.
Machinery Manufacturing: High-efficiency drilling of various mechanical parts
Electronics Industry: Precision drilling for equipment housings and internal structural components

Technical Specifications

Project	YCIZ300HT	YCIZ300HT
Maximum drilling center distance (mm)	ϕ 295	ϕ 410
Maximum processing length (mm)	300	350
Minimum processing length (mm)	100	100
Stroke (mm)	300	400
Drill bit connection method	moshi2#	moshi2#/moshi3#
Position accuracy (mm)	≤ 0.5	≤ 0.8
Surface hardness	12.5	12.5
Transmission form	2 level gear speed change	2 level gear speed change
Spindle speed range (r/min)	225/286	197/223
Spindle motor model	YE2-132M-6-5.5KW	YE2-132M-6-5.5KW
Control system	PLC
Feed type	Hydraulic transmission
Machine tool dimensions (L×W×H mm)	2000×1050×1500	2200×1280×1500
Machine weight (kg)	1500	2000
