High-precision valve double-sided multi-hole CNC drilling and tapping machine

High-precision valve double-sided multi-hole CNC drilling and tapping machine

Brand Name:	VICORD
Model Number:	YCⅡZ200/300/400/600HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

CNC Control System:

PLC

Feeding Mode:

Hydraulic Transmission

Drill Bit Connection Method (Morse Taper Shank):

Mohs2#/Mohs3#

Stroke(mm):

340/450

Maximum Processing Length:

1000(mm)

Minimum Processing Length:

200(mm)

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

CNC Hole Drilling Machine

2 Sided Hole Drilling Machine

Precision 2 Sided Drilling Machine

Product Description

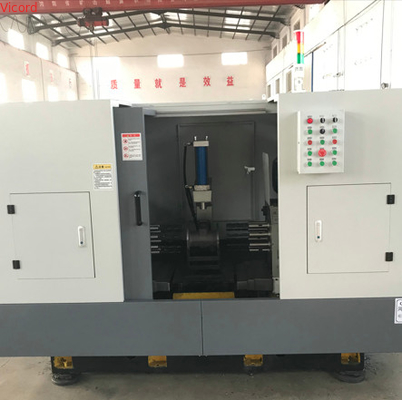

High-Precision Valve Double-Sided Multi-Hole CNC Drilling and Tapping Machine

Product Overview

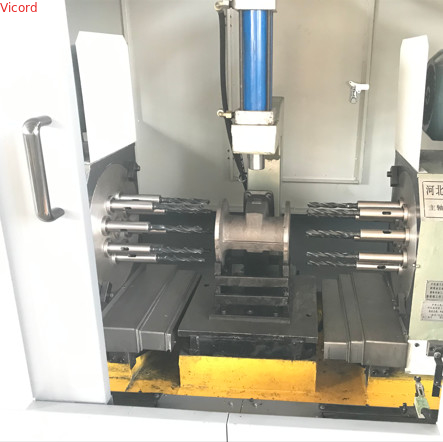

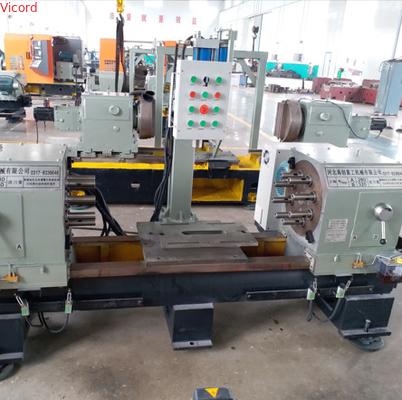

The double-sided multi-hole drilling machine delivers exceptional efficiency, precision, and versatility. Designed for simultaneous drilling on both workpiece sides, this horizontal-configuration machine eliminates workpiece flipping, significantly reducing processing time while maintaining superior accuracy.

Key Features

High Efficiency: Simultaneous multi-bit processing on both sides eliminates manual flipping or turntable use, dramatically reducing cycle times
Precision Engineering: Minimized workpiece handling ensures consistent hole positioning with ≤0.5mm accuracy
Customizable Operation: Adaptable configuration supports diverse drilling requirements across multiple industries
Operator-Friendly Design: Robust construction with optimized rigidity ensures stable high-speed performance and extended equipment life
Multi-Function Capability: Integrated drilling and milling functions with quick-change tooling for versatile applications
Optimized Structure: Horizontal/vertical configurations with multi-spindle arrangements for maximum productivity

Industrial Applications

Valve manufacturing (gate, butterfly, check valves)
Water pump castings of various specifications
Fire protection systems (hydrants, water supply components)
Pipe fitting production (flanges, elbows, connectors)

Technical Specifications

Specification	YCⅡZ200HT	YCⅡZ300HT	YCⅡZ400HT	YCⅡZ600HT
Maximum Drilling Center Distance (mm)	Φ295	Φ410	Φ525	Φ770
Processing Length Range (mm)	200-600	300-800	300-800	400-1000
Stroke (mm)	340	450	450	450
Drill Bit Connection (Morse Taper)	Mohs2#	Mohs2#/3#	Mohs2#/3#	Mohs2#/3#
Position Accuracy (mm)	≤0.5	≤0.6	≤0.8	≤1
Surface Roughness	12.5	12.5	12.5	12.5
Spindle Speed Range (r/min)	225/286	197/223	159/231	11KW Gearmotor
Machine Dimensions (L×W×H mm)	2800×1000×1500	3200×1200×1700	3300×1200×1700	3400×1500×2000
Machine Weight (KG)	1500	1800	2200	3000
