Customized Gate Valve Backflow Valve Y-Type Filter Drilling And Tapping Machine

Customized Gate Valve Backflow Valve Y-Type Filter Drilling And Tapping Machine

Brand Name:	VICORD
Model Number:	YCZG200/300HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Maximum Drilling Center Distance (mm):

Φ230/400

Maximum Machining Dimension From Intermediate Flange To Center (mm):

300/400

Minimum Machining Dimension From Intermediate Flange To Center (mm):

150

Power Box Stroke (mm):

180/320

Moving Table Stroke (mm):

460

Control System:

PLC

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Tapping Drilling Machine

Customized Gate Valve Drilling Machine

Tapping Machine

Product Description

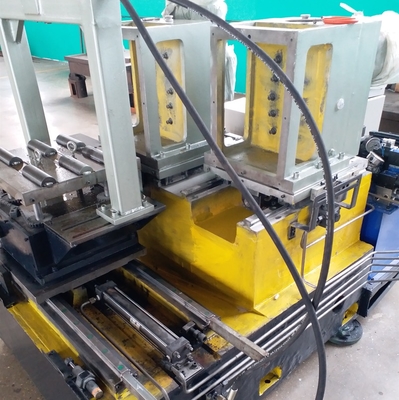

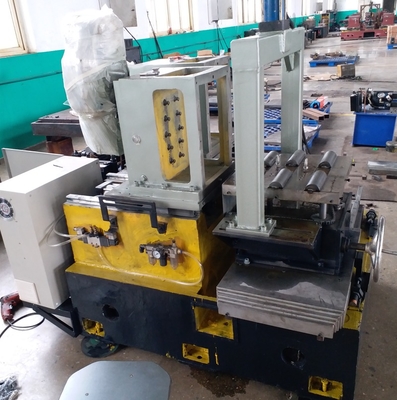

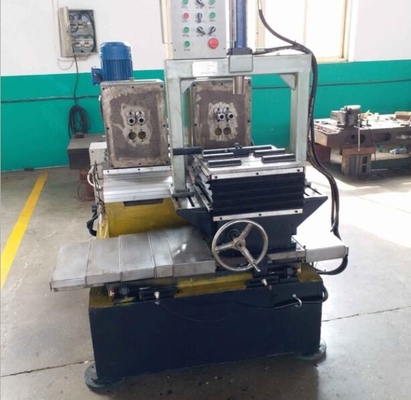

Customized Gate Valve Backflow Valve Y-Type Filter Drilling And Tapping Machine

Customized PLC-controlled gate valve, reflux valve, Y-type filter fully protected drilling and tapping machine is designed for processing multiple threaded holes on the same plane simultaneously. The equipment features advanced CNC system and precise transmission mechanism, offering high efficiency, precision, compact structure, and automation to ensure drilling accuracy and consistency for both single and multi-hole operations.

Main Features

High Efficiency and Precision: Advanced servo control system and motor drive technology enable high-speed, high-precision drilling and tapping operations, significantly reducing processing cycles and improving production efficiency.
Customized Processing: Can be tailored to specific customer needs through program modifications, tool changes, and process parameter adjustments, offering broad application prospects in mechanical processing.
Versatility and Durability: Suitable for various materials and shapes, especially non-standard parts, with high-quality materials and manufacturing processes ensuring long-term stability and reduced maintenance.

Application Areas

Metal Processing: Excellent performance for steel, aluminum alloy, and other metal materials, completing drilling and tapping operations efficiently and accurately.
Machinery Manufacturing: Provides high-speed, high-precision processing capabilities to enhance production efficiency and reduce costs.
Hardware Manufacturing: Meets industry requirements for product quality and production efficiency with efficient, precise processing capabilities.

Technical Specifications

Project	Machine Specifications	YCZG200HT	YCZG300HT
Technical Specifications	Maximum drilling center distance (mm)	Φ230	Φ400
	Maximum machining dimension from intermediate flange to center (mm)	300	400
	Minimum machining dimension from intermediate flange to center (mm)	150	150
Power box stroke (mm)		180	320
Moving table stroke (mm)		460	460
Processing accuracy	Drill bit connection method	ER chuck	ER chuck
	Position accuracy (mm)	≤0.2	≤0.2
	Surface roughness	12.5	12.5
Spindle drive	Spindle speed range (r/min)	400/100	300/100
	Spindle motor model	YE2-132M-6-2.2KW	YE2-132M-6-3KW
	Control system	PLC
Feed mode		Hydraulic transmission/cylinder transmission
Machine tool appearance	Machine tool dimensions (Length×width×height)(mm)	2300×1700×1700	2500×1900×1800
Machine tool appearance	Machine weight(KG)	1100	1800
