Customized Multi-function Vertical Bonnet Flange Drilling And Tapping Center

Customized Multi-function Vertical Bonnet Flange Drilling And Tapping Center

Brand Name:	VICORD
Model Number:	YCZG-SKZG40
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Z-axis Travel(mm):

700

X-axis Travel(mm):

500

Y-axis Travel(mm):

500

Tool Connection Method:

BT40

Position Accuracy:

≤0.015/3000

Surface Roughness:

3.2

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Multi-function Bonnet Drilling Center

Vertical Bonnet Drilling Tapping Center

Customized Vertical Bonnet Drilling Center

Product Description

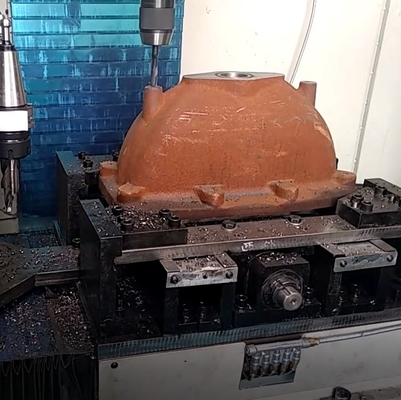

Customized Multi-function Vertical Bonnet Flange Drilling And Tapping Center

Product Description

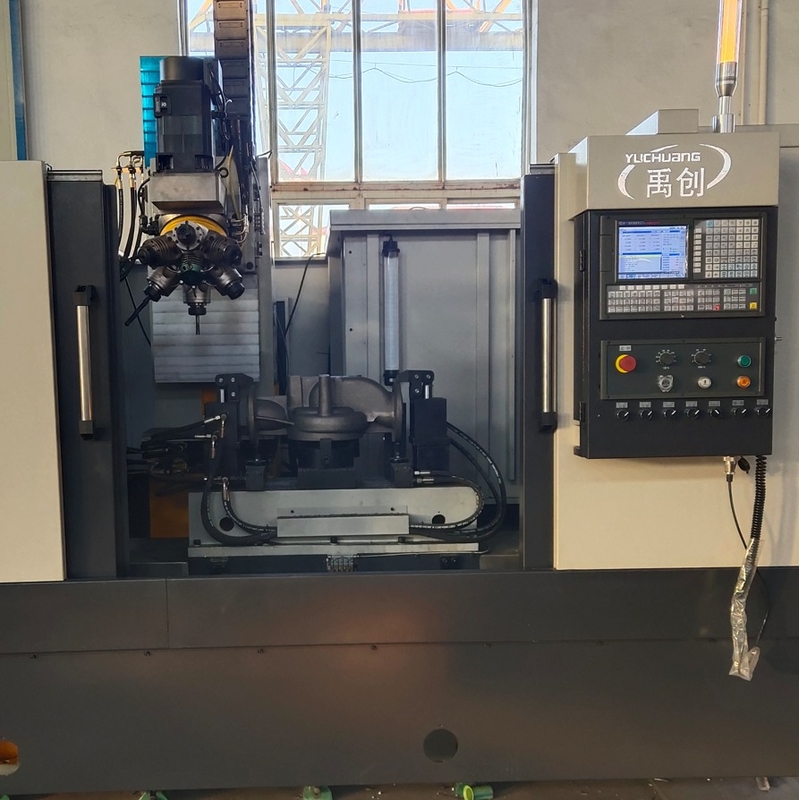

The customized vertical drilling and tapping center is a compact, high-performance machine tool that integrates cutting, drilling, and tapping functions. Designed for efficiency and precision, this CNC machine features advanced automation capabilities and occupies minimal floor space compared to traditional vertical machining centers.

Main Features

Versatility: Performs multiple machining processes including drilling, milling, and tapping for complex workpiece requirements
High Precision: Equipped with high-precision servo control system and advanced detection technology for superior accuracy
Automation: Features automatic tool changing system and supports advanced programming software with fault self-diagnosis
Efficiency: High-speed electric spindle and rapid feed system significantly reduce processing cycles with optional automatic loading/unloading

Application Fields

Mechanical Processing: Precision drilling, tapping and milling of various components to enhance part consistency
Mold Manufacturing: Accurate processing of mold cavities and cores to ensure dimensional accuracy and surface quality
Automotive Manufacturing: High-speed cutting and multi-axis capabilities for complex surface processing in automotive molds

Technical Specifications

Project	Machine Tool Specifications	YCZG-SKZG40
Z-axis travel(mm)		700
X-axis travel(mm)		500
Y-axis travel(mm)		500
Tool connection method		BT40
Position accuracy		≤0.015/3000
Surface roughness		3.2
Spindle speed range (r/min)		0-1000
Spindle motor model		5.5KW servo
CNC control system (optional)		Nanjing Huaxing-servo system Guangzhou CNC-servo system
Servo motor		7.7N.m
Dimensions (L×W×H)(mm)		2760×2200×2430
Machine weight (KG)		3000
