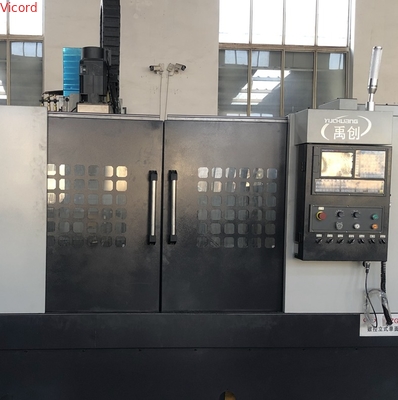

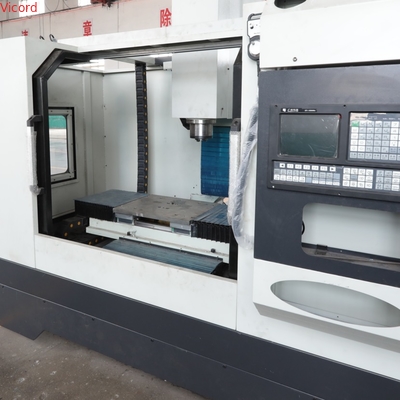

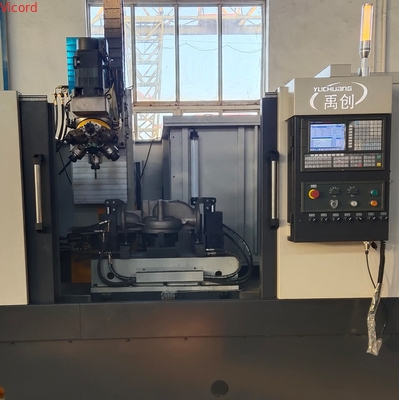

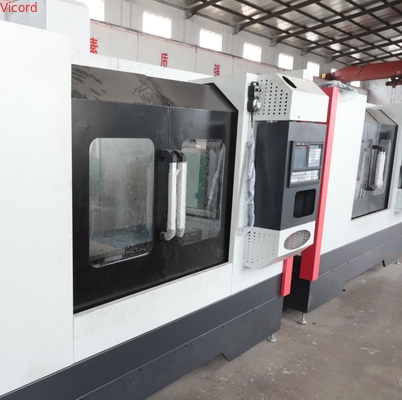

500mm Y-axis Travel Customized Vertical Bonnet Flange Drilling And Tapping Center With ≤0.015/3000 Position Accuracy

500mm Y-axis Travel Customized Vertical Bonnet Flange Drilling And Tapping Center With ≤0.015/3000 Position Accuracy

Brand Name:	VICORD
Model Number:	YCZG-SKZG40
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Z-axis Travel(mm):

700

X-axis Travel(mm):

500

Y-axis Travel(mm):

500

Tool Connection Method:

BT40

Position Accuracy:

≤0.015/3000

Surface Roughness:

3.2

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Flange Drilling Tapping Center

500mm Drilling And Tapping Center

Customized Drilling And Tapping Center

Product Description

500mm Y-axis Travel Customized Vertical Bonnet Flange Drilling And Tapping Center With ≤0.015/3000 Position Accuracy

Product Overview

This customized vertical drilling and tapping center integrates cutting, drilling, and tapping functions in a compact design derived from traditional vertical machining centers. Featuring advanced CNC systems and precise transmission mechanisms, it delivers high efficiency, exceptional accuracy, and automated operation for consistent drilling results across single or multiple hole patterns.

Key Features

Versatile Machining: Performs drilling, milling, tapping, and other operations for complex workpiece requirements
Precision Engineering: High-precision servo control system and advanced detection technology ensure machining accuracy
Automated Operation: Features automatic tool changing system and supports advanced programming software with self-diagnostic capabilities
High-Speed Performance: Equipped with high-speed electric spindle and rapid feed system to reduce cycle times
Material Flexibility: Processes aluminum alloy, steel, copper, engineering plastics, and other materials
Adaptive Capacity: Handles small to large parts, especially effective for complex shapes and polyhedron workpieces

Applications

Mechanical Processing: Precision drilling, tapping, and milling of components to enhance part consistency and machinery performance
Mold Manufacturing: Accurate machining of mold cavities and cores to improve dimensional accuracy and surface quality
Automotive Production: High-speed cutting and multi-axis capabilities for complex surface machining in cover molds and housings

Technical Specifications

Project	Machine Tool Specifications	YCZG-SKZG40
Technical Specifications	Z-axis travel (mm)	700
	X-axis travel (mm)	500
	Y-axis travel (mm)	500
Tool Connection	Tool connection method	BT40
Processing Accuracy	Position accuracy	≤0.015/3000
Processing Accuracy	Surface roughness	3.2
Spindle Drive	Transmission mode	Stepless speed change
	Spindle speed range (r/min)	0-1000
	Spindle motor model	5.5KW servo
Control System	CNC control system (optional)	Nanjing Huaxing-servo system Guangzhou CNC-servo system
Feeding System	Servo motor	7.7N.m
Physical Dimensions	Full protection (L×W×H) (mm)	2760×2200×2430
Physical Dimensions	Machine weight (KG)	3000
