Customized Gate Valve Backflow Valve Y-Type Filter Drilling And Tapping Machine With 180/320mm Power Box Stroke

Customized Gate Valve Backflow Valve Y-Type Filter Drilling And Tapping Machine With 180/320mm Power Box Stroke

Brand Name:	VICORD
Model Number:	YCZG200/300HT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Maximum Drilling Center Distance (mm):

Φ230/400

Maximum Machining Dimension From Intermediate Flange To Center (mm):

300/400

Minimum Machining Dimension From Intermediate Flange To Center (mm):

150

Power Box Stroke (mm):

180/320

Moving Table Stroke (mm):

460

Control System:

PLC

Packaging Details:

Wrap plastic film

Supply Ability:

30 sets per month

Highlight:

Backflow Valve Drilling Tapping Machine

Customized Drilling and Tapping Machine

Product Description

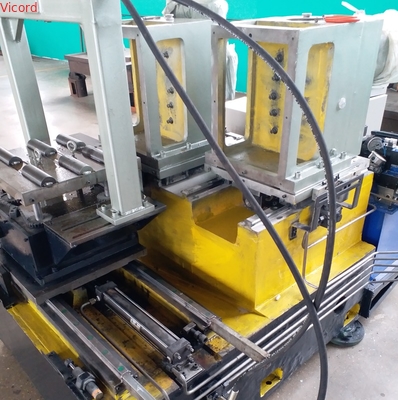

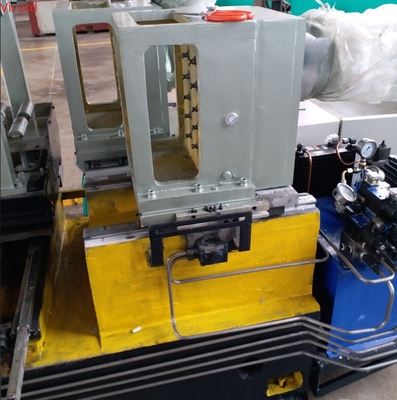

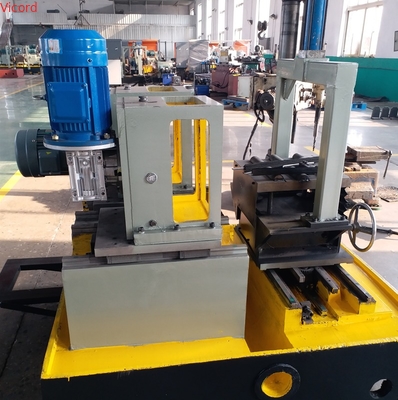

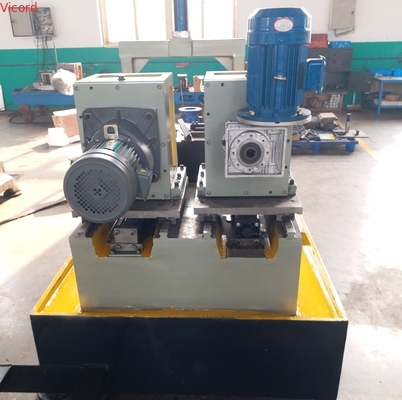

PLC Controlled Drilling and Tapping Machine for Gate Valve, Backflow Valve and Y-type Filter

The fully protected drilling and tapping machine is designed for processing multiple threaded holes on the same plane simultaneously. Featuring an advanced CNC system and precise transmission mechanism, this equipment delivers high efficiency, precision, compact structure, and automation, ensuring accuracy and consistency for both single and multi-hole drilling operations.

Key Features

High Efficiency & Precision: Advanced servo control system and motor drive technology enable high-speed, high-accuracy drilling and tapping operations, significantly reducing processing cycles and improving productivity.
Customized Processing: Can be tailored to specific customer requirements through program modifications, tool changes, and process parameter adjustments.
Durability & Versatility: Suitable for various materials and shapes, especially non-standard parts. Built with high-quality materials and advanced manufacturing processes for stable long-term performance and reduced maintenance.

Application Areas

Metal Processing: Excellent performance for steel, aluminum alloy, and other metal materials
Machinery Manufacturing: Ideal for high-volume drilling and tapping operations
Hardware Manufacturing: Perfect for numerous drilling and tapping processes

Technical Specifications

Project	YCZG200HT	YCZG300HT
Maximum drilling center distance (mm)	Φ230	Φ400
Maximum machining dimension (mm)	300	400
Minimum machining dimension (mm)	150	150
Power box stroke (mm)	180	320
Moving table stroke (mm)	460	460
Position accuracy (mm)	≤0.2	≤0.2
Surface roughness	12.5	12.5
Spindle speed range (r/min)	400/100	300/100
Spindle motor model	YE2-132M-6-2.2KW	YE2-132M-6-3KW
Control system	PLC
Feed mode	Hydraulic transmission/cylinder transmission
Machine dimensions (L×W×H mm)	2300×1700×1700	2500×1900×1800
Machine weight (KG)	1100	1800
